With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.3-inch 480x800 resolution display/4.3-inch IPSTFT/ ST7701S controller/MIPI interface/Android/RK motherboard | TFT Display | 480x800 |
|
60.86x102.57x2.3 | 4.3 | 4.3 | 56.16x93.6 | 550cd/m2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -20~60℃ | +3.3V | ST7701S | ||

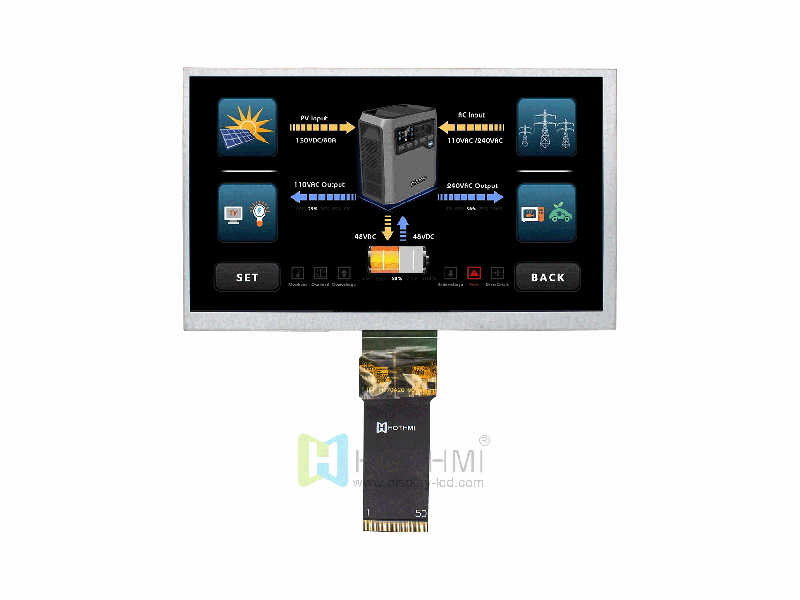

| 7.0-inch 1024x600 resolution display/7.0 IPS high brightness full-viewing angle TFT/visible in sunlight/T.B.D controller | TFT Display | 1024x600 |
|
164.9x100.0x3.45 | 7.0 | 7.0 | 154.21x85.92 | 154.21x85.92 | RGB | IPS | -20~70℃ | +3.3V | T.B.D | |||
| 7.0-inch 1024x600 resolution capacitive touch display/visible in sunlight /RGB interface/STM32/RK/TFT-H070A20WSIFT7C50 | TFT Display | 1024x600 |
|
186.7x111.15x5.5 | 7.0 | 7.0 | 154.21x85.92 | IPS | 700cd/m2 | FPC-50 pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | T.B.D | |

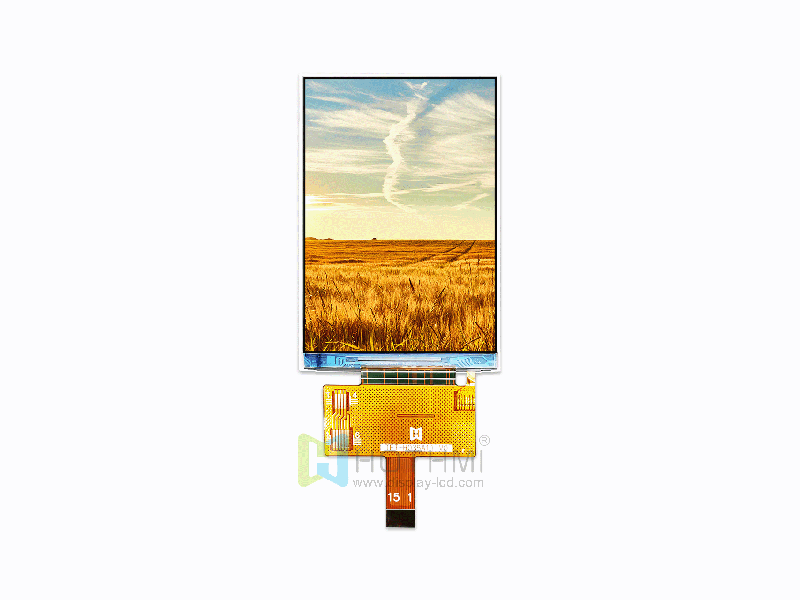

| 320x480 IPS TFT/3.5-inch sunlight-readable LCD/serial interface/ST7272 /C8051/Arduino/STM32 TFT-H035A11HVTST5N15 | TFT Display | 320x480 |
|
54.5x83.0x2.3 | 3.5 | 3.5 | 48.96x73.44 | 12H | 500cd/m2 | FPC-15 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7796<TFT> | |

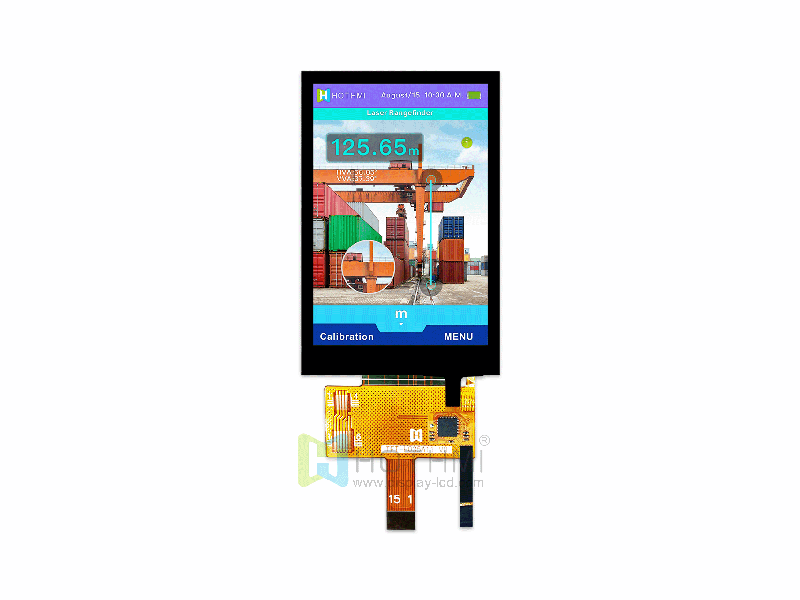

| 3.5-inch 320x480 IPS TFT Capacitive Touch LCD Display/ST7272 Controller/Arduino/STM32 TFT-H035A11HVTST5C15 | TFT Display | 320x480 |
|
54.66x83.0x3.8 | 3.5 | 3.5 | 48.96x73.44 | 12H | 400cd/m2 | FPC-15 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7796<TFT>，GT911<CTP> | |

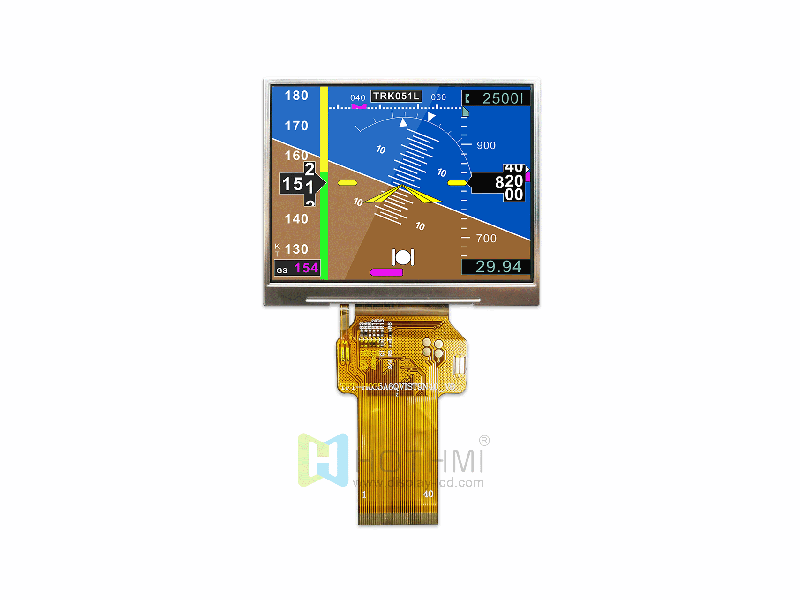

| 3.5-inch 320x240 IPS TFT LCD display/3.5-inch high brightness sunlight-visible TFT/STM32/RK | TFT Display | 320x240 |
|
76.84x63.84x3.35 | 3.5 | 3.5 | 70.08x52.56 | 900cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7272 | ||

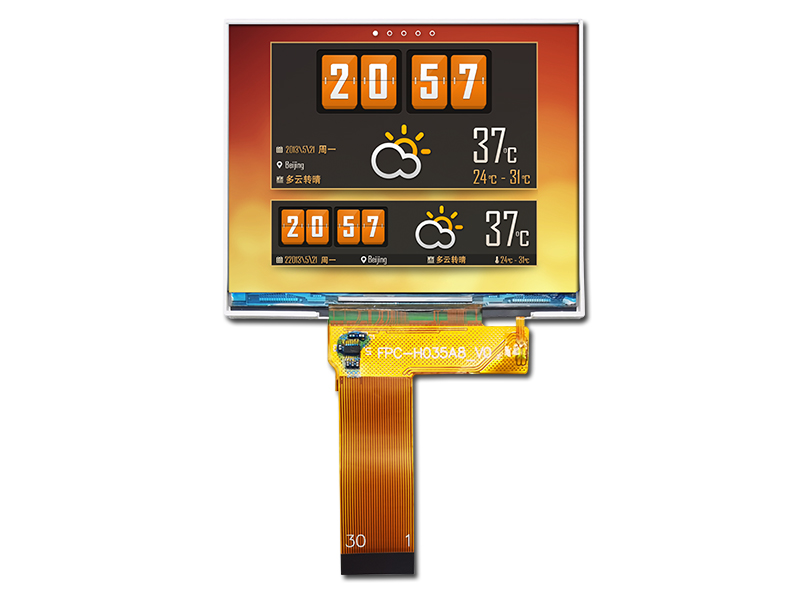

| 3.5-inch 640x480 IPS TFT color display/industrial MIPI interface/ST7703 controller/plug-in FPC/Android/RK | TFT Display | 640x480 |
|
74.5x62.4x2.37 | 3.5 | 3.5 | 70.08x52.56 | 70.08x52.56 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7703 | ||

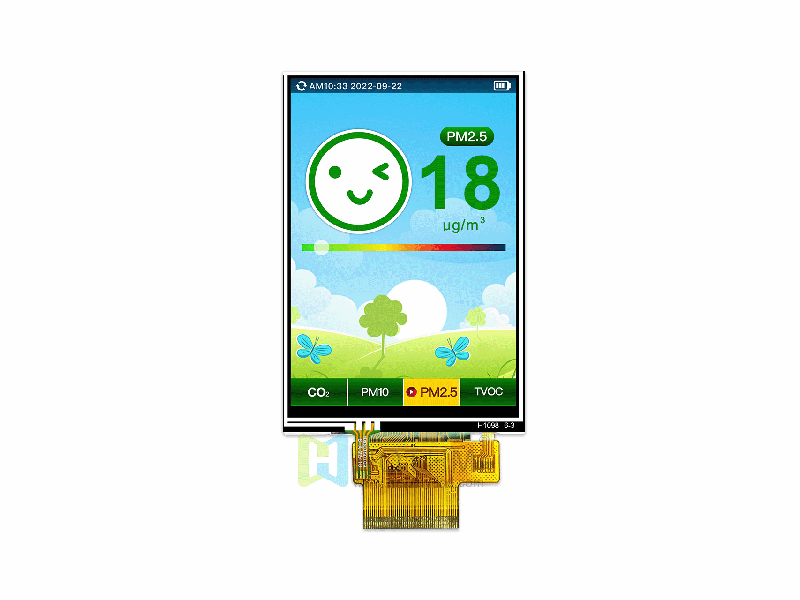

| 3.5-inch 320x480 TFT LCD display/3.5"resistive touch TFT/IPS/MCU/ST7796S controller | TFT | 320x480 |
|
55.66x85.04x3.55 | 3.5 | 3.5 | 48.96x73.44 | 48.96x73.44 | MCU | IPS | -20~70℃ | +3.3V | ST7796S | |||

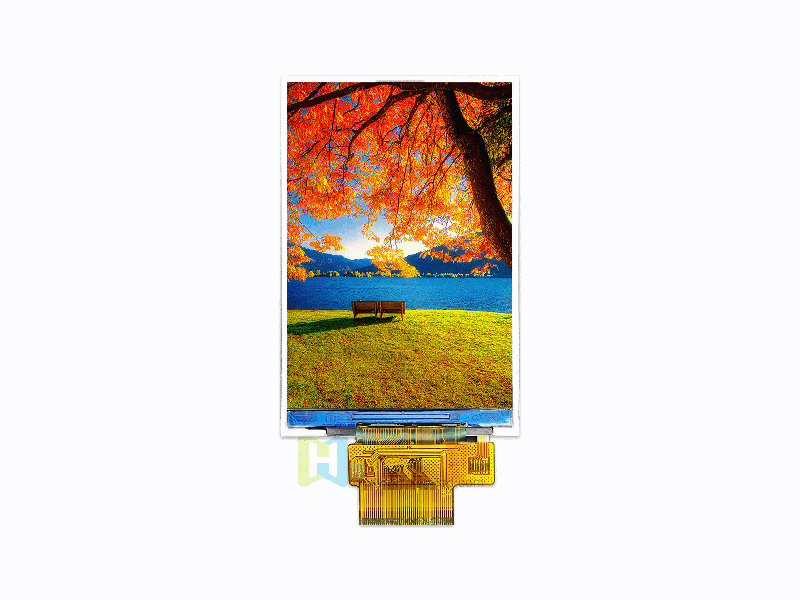

| 3.5-inch 320x480 TFT LCD / IPS full viewing angle /MCU/C8051/Arduino/STM32/ST7796S controller | TFT | 320x480 |
|
55.66x85.04x2.4 | 3.5 | 3.5 | 48.96x73.44 | 350cd/m2 | FPC-45 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7796S | ||

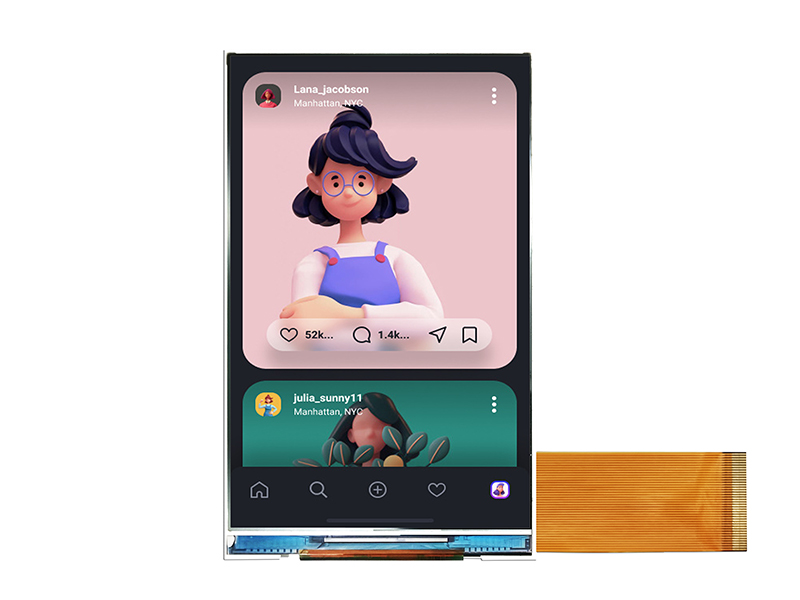

| 320x480 IPS TFT LCD /3.5 Inch TFT/Plug-in FPC/ST7796S Controller/Arduino/STM32 | TFT | 320x480 |
|
54.76x83.58x2.5 | 3.5 | 3.5 | 54.76x83.58x2.5 | IPS | 500cd/m2 | FPC-50 pin | compatible with multiple interfaces | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7796S |
