With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.0 inch TFT LCD display 800x480 dot matrix TTL interface wide viewing angle compatible with STM32 optional touch screen/TFT-H070A3SVTFT3N40 | TFT LCD | 800x480 |
|
164.9x100.0x3.5 | 7.0 | 7.0 | 153.84x85.632 | 6H | 350cd/m2 | FPC-40PIN | TTL | Anti-static ESD 8KV | -20~70℃ | 3.3V | EK9716BD4+EK73002AB2 | |

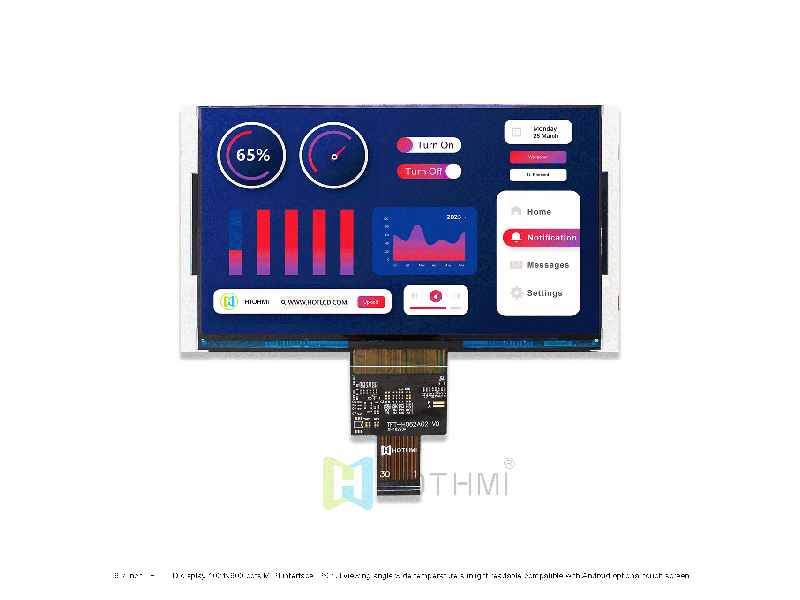

| 6.2 inch TFT LCD display 1024x600 dots MIPI interface IPS full viewing angle wide temperature sunlight readable/TFT-H062A02WSIJDGN30 | TFT LCD | 1024x600 |
|
155.3x88.3x4.7 | 6.2 | 6.2 | 137.47x77.23 | Full view | 1700cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | NV3051 | |
| 4.0 inch TFT LCD DISPLAY SPI 320x480px/wide temperature/IPS full viewing angle/sunlight readable/ST7365 optional touch screen/TFT-H040A27FWIST5N40 | TFT LCD | 320x480 |
|
60.88x94.57x2.3 | 4.0 | 4.0 | 55.68x83.52 | Full view | 500cd/m2 | FPC-40PIN | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7365 | |
| 10.3-inch TFT LCD IPS LCD display MIPI interface/1440x540 dot matrix color screen module NV3051F/optional touch screen/TFT-H103W01ZMINV5N30 | TFT LCD | 1440x540 |
|
265.2×109.8×5.0 | 10.3 | 10.3 | 243.65×91.37 | Full view | 450cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S | |

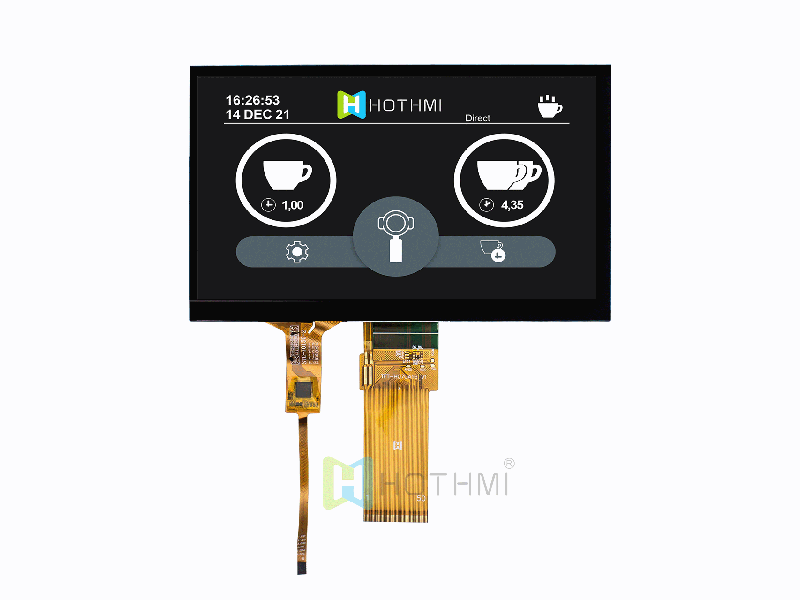

| 7 inch 800x480px TN Sunlight Readable Capacitive TFT LCD Display Module RGB/TFT-H070A16SVTFT8C50 | TN TFT | 800x480 |
|
165x100x7.5 | 7.0 | 7.0 | 153.84x85.63 | 12H | 850cd/m2 | FPC-50PIN | RGB | With capacitive touch function | -20~70℃ | 3.3V | EK9716 | |

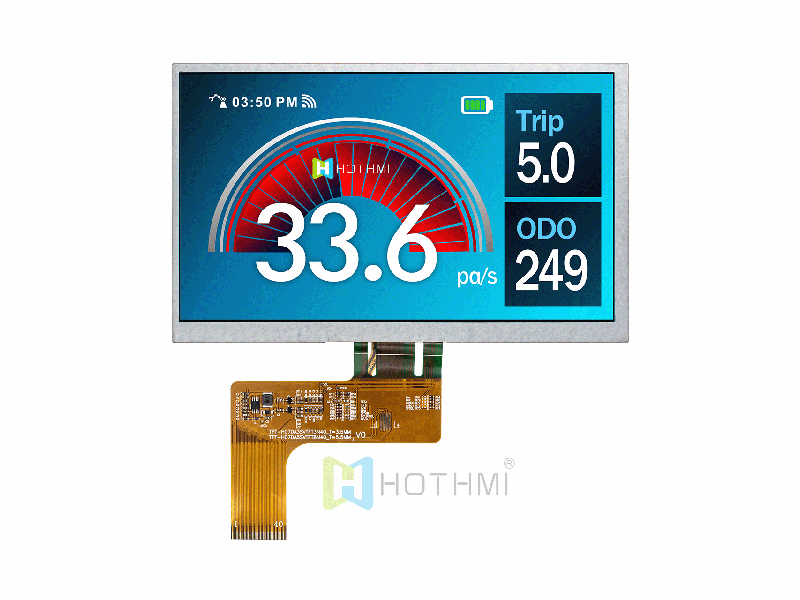

| 5 inch TFT LCD display TN 800x480px Sunlight readable RGB interface/optional touch screen/TFT-H050A18SVRJDNN40 | TN TFT | 800x480 |
|
112.20x74.80x3.0 | 5.0 | 5.0 | 5.0 | Normally White(Trans-Reflective) | 50cd/m2 | FPC-40PIN | RGB | Semi-transparent low power consumption | -20~70℃ | 3.3V | T.B.D | |

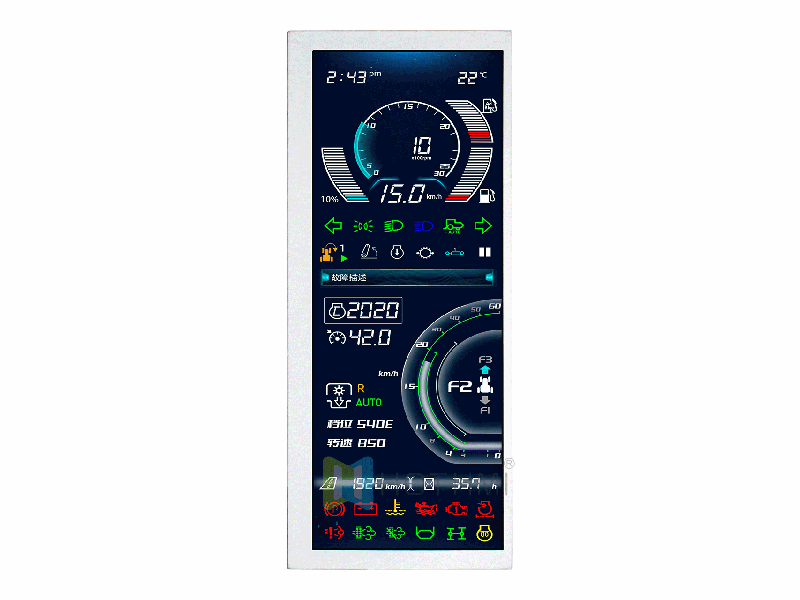

| Full viewing angle IPS/6.2-inch TFT LCD module/360x960 dot matrix color screen module/RGB interface ST7701S/STM32/TFT-H062A01ZDIST2N40 | TFT LCD | 360x960 |
|
58.20x155.0x2.30 | 6.2 | 6.2 | 55.3x147.46 | Full view | 250cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -20~60℃ | 3.3V | ST7701S | |
| 4-inch TFT LCD display module/IPS full viewing angle/HD 480x800 dot matrix/ILI9806/readable under sunlight/TFT-H040B25WVIIL5N50 | TFT LCD | 480x800 |
|
57.14x96.85x2.0 | 4.0 | 4.0 | 51.84x86.40 | Full view | 500cd/m2 | 50pin | MCU 8/16bit | Anti-static ESD 8KV | -20~70℃ | 3.3V | ILI9806 | |
| 3.2-inch TFT LCD module/240x320 dot matrix color screen module/SPI interface/ST7789 with Android/TFT-H032A05QVIST6N40 | TFT LCD | 240x320 |
|
55.04x77.70x2.45 | 3.2 | 3.2 | 48.60x64.80 | Full view | 600cd/m2 | FPC-40PIN | MCU 8/16bit | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789 | |

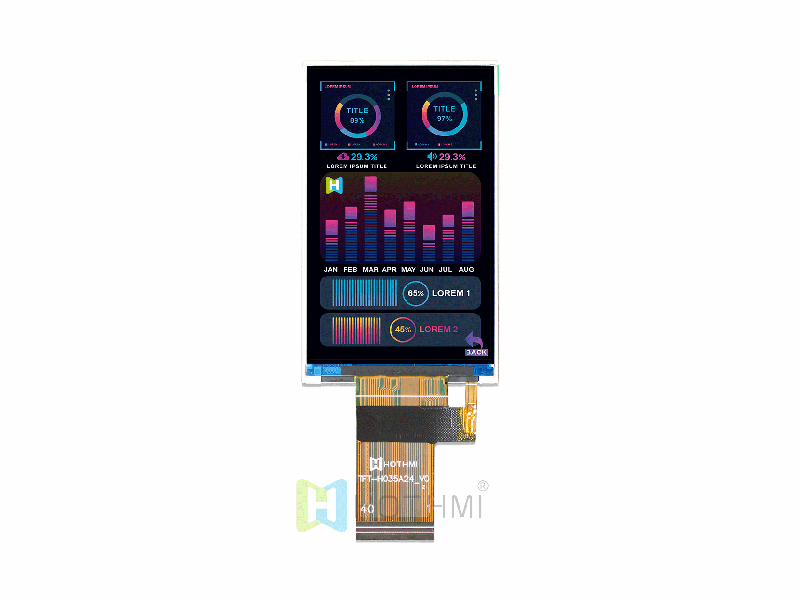

| 3.5-inch IPS TFT LCD module display/480x800/ST7701S/color screen module/readable under sunlight/TFT-H035A24WVIST8N40 | TFT LCD | 480x800 |
|
51.32x 86.61x 3.6 | 3.5 | 3.5 | 45.36x75.60 | Full view | 800cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7701S |
