With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.7inch TFT LCD/1024x768/Wide temperature/IPS/Sunlight readable display/LVDS/JD9165/TFT-H097B01XGIJD5N40 | TFT LCD | 1024x768 |
|
210.21x164.25x2.85 | 9.7 | 9.7 | 196.61x147.46 | IPS | 500cd/m2 | FPC-40PIN | LVDS | Anti-static ESD 8KV | -20~80℃ | 3.3V | JD9165 | |
| 3.5 inch 640x480 pixels IPS TFT MIPI interface wide temperature with black cover/TFT-H035B16VGIST4G30 | TFT LCD | 640x480 |
|
79.50x65.0x4.75 | 3.5 | 3.5 | 70.08x52.56 | Full view | 400cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 | |
| 3.5 inch 640x480 pixels IPS TFT LCD display MIPI interface wide temperature capacitive touch screen Android/TFT-H035B16VGIST3C30 | TFT LCD | 640x480 |
|
76.90x63.90x4.75 | 3.5 | 3.5 | 70.08x52.56 | Full view | 350cd/m2 | FPC-30PIN | MIPI | With capacitive touch function | -30~80℃ | 3.3V | ST7703<TFT>,GT911<CTP> | |
| 3.5 inch 640x480 pixel TFT LCD display IPS MIPI DSI interface Wide temperature application industrial equipment/TFT-H035B16VGIST4N30 | TFT LCD | 640x480 |
|
76.90x63.90x3.1 | 3.5 | 3.5 | 70.08x52.56 | Full view | 450cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7703 | |

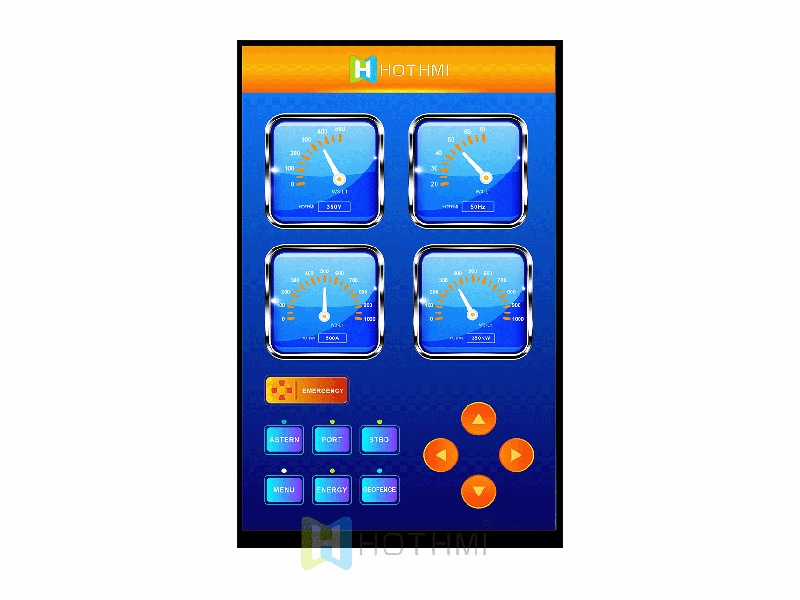

| 5.5 inch IPS TFT LCD display module/720x1280 dots/IPS HD/ST7701S/MIPI DSI interface/sunlight readable/3.3V/Android compatible | TFT LCD | 720x1280 |
|
70.6x128.25x3.52 | 5.5 | 5.5 | 68.04x120.96 | Full view | 1000cd/m2 | FPC-50PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | NV3051F | |
| 8.0inch LVDS IPS 800x1280 high brightness IPS TFT LCD display Module/NV3051F1/sunlight readable Linux/TFT-H080A6HDINV6N40 | TFT LCD | 800x1280 |
|
114.70x184.2x2.65 | 8.0 | 8.0 | 107.64x172.22 | Full view | 600cd/m2 | FPC-40PIN | 107.64x172.22 | Anti-static ESD 8KV | -20~70℃ | 3.3V | NV3051F1 | |

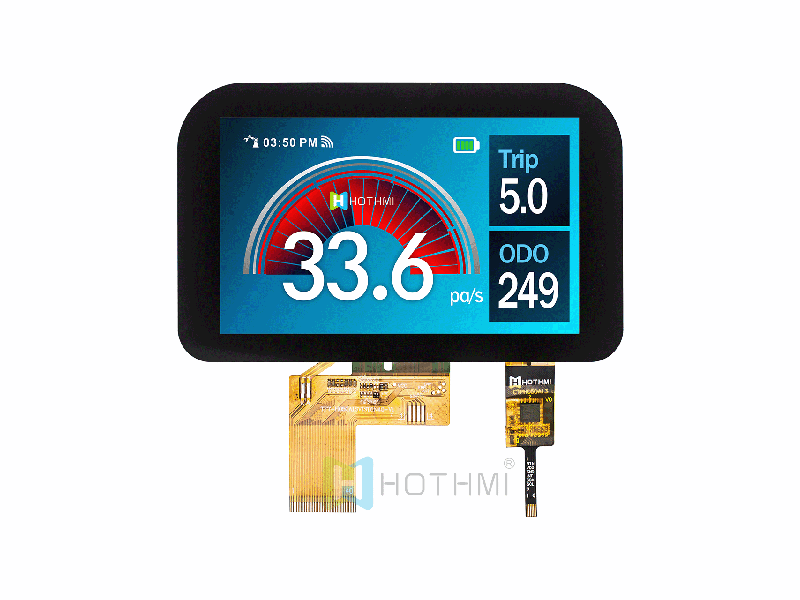

| 5.0 inch TFT LCD display 800x480 dot wide temperature IPS sunlight readable TTL capacitive touch / STM32 / RK/TFT-H050A1SVISTKC40 | TFT LCD | 800x480 |
|
135x85.25x4.75 | 5.0 | 5.0 | 108x64.8 | Full view | 1500cd/m2 | FPC-40PIN | TTL | With capacitive touch function | -30~80℃ | 3.3V | ST7262<TFT>, GT911<CTP> | |

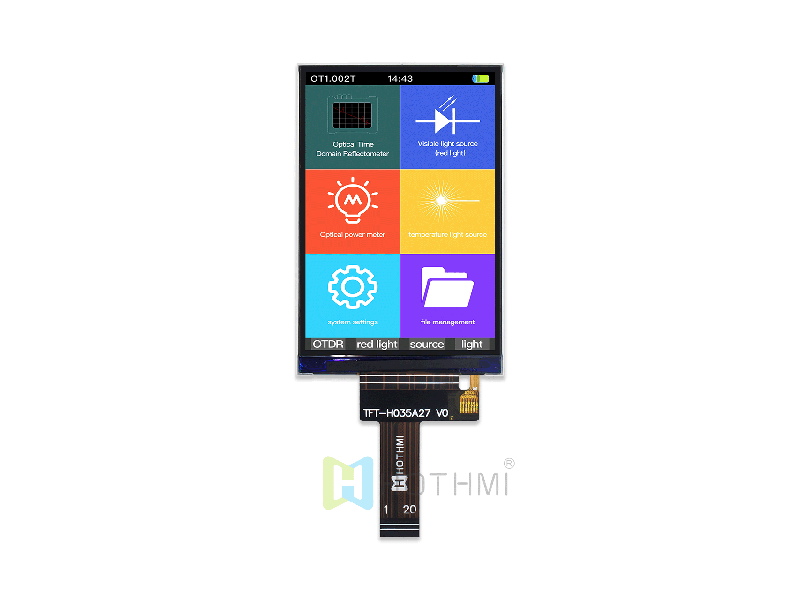

| 3.5 inch TFT LCD module/wide viewing angle/320x480 dots/MIPI DSI/ST7365P/sunlight readable/Android compatible/TFT-H035A27HVTST5N20 | TFT LCD | 320x480 |
|
54.66x83.0x2.34 | 3.5 | 3.5 | 48.96x73.44 | 12H | 500cd/m2 | FPC-20PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7365P | |
| 2.4-inch TFT LCD display 240x320 dots/wide temperature IPS full angle/RGB+SPI/sunlight readable/compatible with C8051/Arduino/STM32/TFT-H024B17QVIST6N50 | TFT LCD | 240x320 |
|
42.52x59.61x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full view | 600cd/m2 | FPC-50PIN | SPI+RGB | 抗靜電ESD 8KV | -30~80℃ | 3.3V | ST7789V2 | |
| 10.1 inch TFT LCD display Capacitive touch screen 1280x800 dot matrix LVDS interface IPS full viewing angle Sunlight readable Compatible/TFT-H101D13WXIWZKN40 | TFT LCD | 1280x800 |
|
229.46x149.10x4.70 | 10.1 | 10.1 | 216.96x135.60 | Full view | 1000cd/m2 | FPC-40PIN | LVDS | With capacitive touch function | -20~70℃ | 3.3V | T.B.D |
