With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

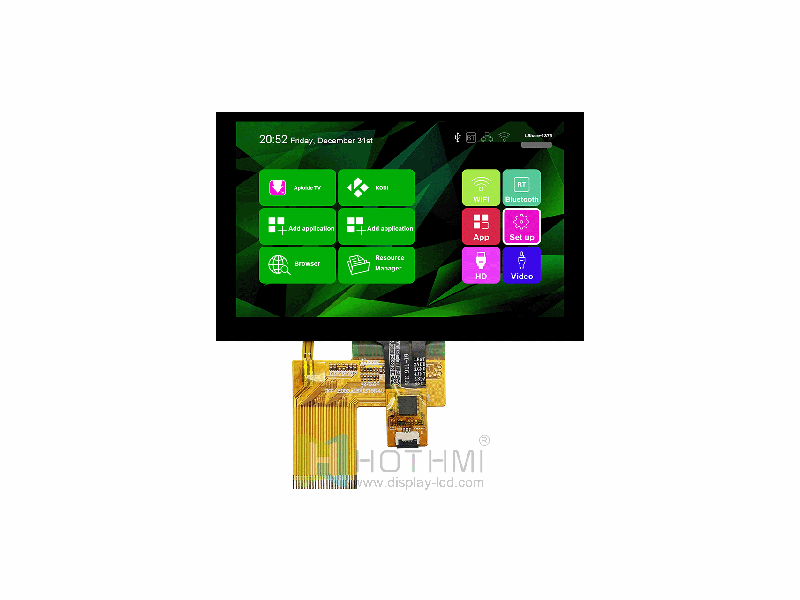

| 5.0-inch Color Capacitive Touch IPS TFT LCD/800x480 Full Viewing Angle TFT Display/RGB Interface | TFT Display | 800x480 |
|
120.7x75.8x4.75 | 5.0 | 5.0 | 108.0x64.8 | IPS | 450cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7262(TFT),GT911(CTP) | |
| 4.3-inch 800x480 color high brightness IPS TFT LCD/full viewing angle sunlight visible TFT display/TTL interface/STM32/RK series | TFT Display | ST7262 |
|
105.5x67.15x4.95 | 4.3 | 4.3 | 95.04x53.586 | IPS | 850cd/m2 | FPC-40 pin | TTL | Anti-static ESD 8KV | -30~80℃ | +3.3V | -30~80℃ | |
| 4.3-inch 480x272 resolution color high brightness IPS TFT LCD/IPS TFT display/RGB interface | TFT Display | 480x272 |
|
105.46x67.11x4.5 | 4.3 | 4.3 | 95.04x53.86 | IPS | 1000cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | SC7283 | |
| 4.3-inch 480x272 color high brightness capacitive touch TFT LCD/RGB interface/sunlight viewable | TFT Display | 480x272 |
|
105.46x67.11x4.5 | 4.3 | 4.3 | 95.04x53.86 | 800cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | SC7283 | ||
| 4.3-inch color TFT LCD/800x480TFT display/MCU interface/IPS wide temperature TFT/C8051/Arduino/STM32/sunlight visible | TFT Display | 800x480 |
|
105.42x67.07x2.95 | 4.3 | 4.3 | 95.04x53.856 | IPS | 500cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7262+HT7381 | |
| 4.3-inch color resistive touch display/800x480 resistive touch TFT display/IPS wide temperature TFT TFT-H043A12SVILT4R40 | TFT Display | 800x480 |
|
105.42x67.07x4.2 | 4.3 | 4.3 | 95.04x53.856 | IPS | 400cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | -30~80℃ | |
| 4.3-inch 800x480 capacitive touch TFT display/MCU interface/IPS full-viewing angle wide temperature TFT | TFT Display | 800x480 |
|
105.42x67.07x4.7 | 4.3 | 4.3 | 95.04x53.856 | IPS | 400cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7262+HT7381(TFT),GT911(CTP) | |

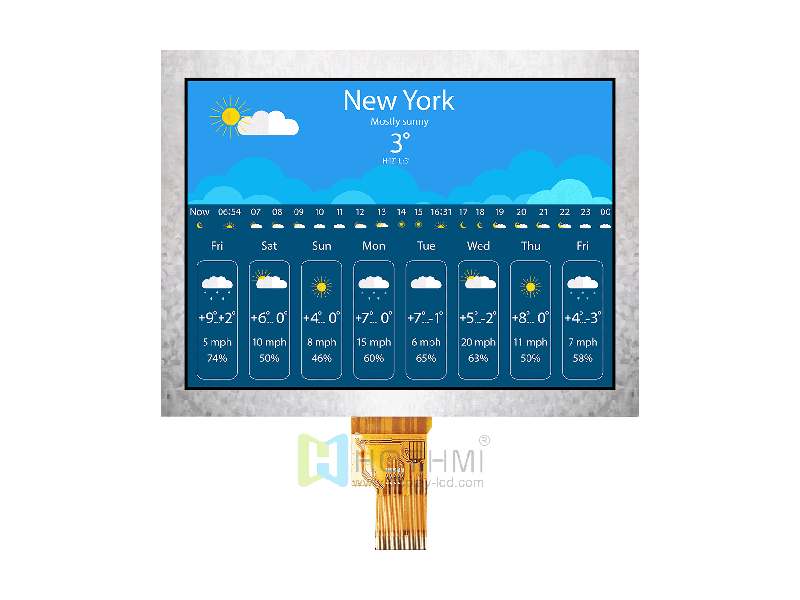

| 8.0-inch display/1024x768 LVDS interface TFT LCD/8.0-inch IPS wide temperature TFT/Linux/RK motherboard | TFT Display | 1024x768 |
|
174.5x135.7x3.0 | 8.0 | 8.0 | 162.05x121.54 | IPS | 162.05x121.54 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | HX8282A+HX8695_B01 | |
| 4.3-inch 480x800 capacitive touch display/ MIPI interface TFT LCD/ IPS wide temperature TFT/ST7701S controller | TFT Display | 480x800 |
|
60.86x102.57x2.2 | 4.3 | 4.3 | 56.16x93.6 | IPS | 450cd/m2 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -20~50℃ | +3.3V | ST7701S | |
| 4.3-inch 480x800 capacitive touch display / IPSwide temperature TFT/Android/RK motherboard/MIPI interface | TFT Display | 480x800 |
|
67.0x116.24x3.85 | 4.3 | 4.3 | 67.0x116.24x3.85 | IPS | 300cd/m2 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -20~60℃ | +3.3V | ST7701S |
