With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

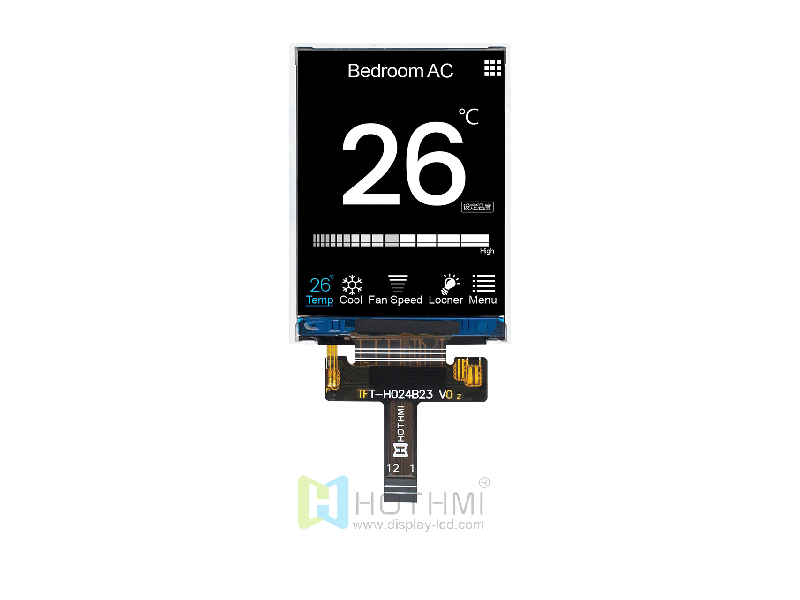

| 2.4-inch 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller TFT-H024B23QVIST4N12 | TFT | 240x320 |
|
42.72x58.56 | 2.4 | 2.4 | 36.72x48.96 | IPS | 400cd/m2 | FPC-12PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7789<TFT> | |

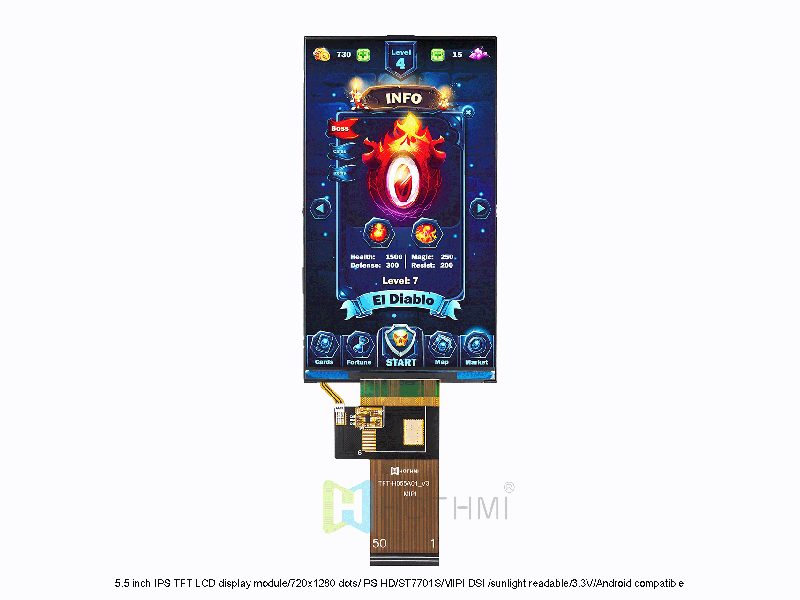

| 5.5-inch color display/IPS full viewing angle/high brightness capacitive touch TFT TFT-H055A61HDINVKC30 | TFT | 720x1280 |
|
76.0x140x0.7 | 5.5 | 5.5 | 68.04x120.96 | IPS | 1000cd/m2 | FPC-50pin | MIPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | NV3051F<TFT>,GT911<CTP> | |
| 5.5-inch IPS full-view TFT/720X1280 resolution color display/NV3051 controller/high brightness TFT TFT-H055A61HDINVKN40 | TFT | 720x1280 |
|
70.6x128.25 | 5.5 | 5.5 | 68.04x120.96 | IPS | 1000cd/m2 | FPC-50pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | NV3051F<TFT>,GT911<CTP> | |

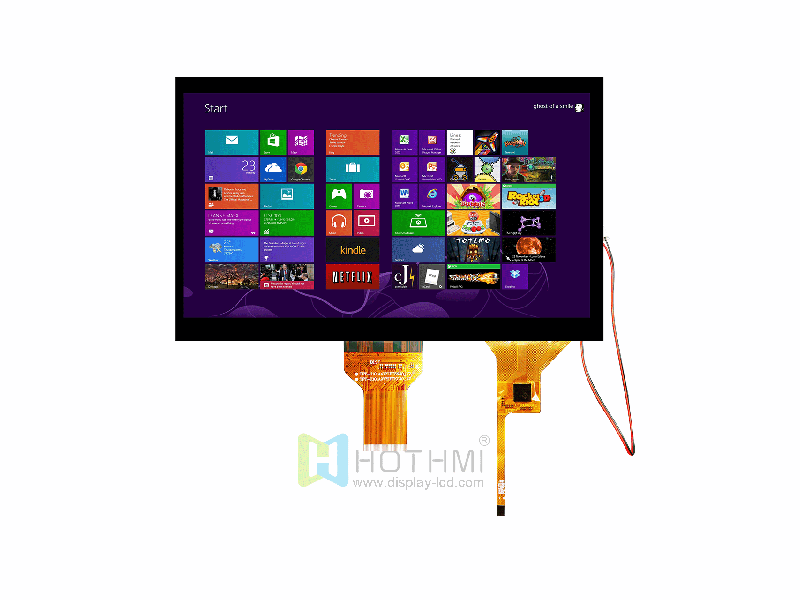

| 10.1 inch IPS full viewing angle/1024x600 resolution capacitive touch screen/LVDS interface TFT-H101A9WSIFTKC40 | TFT | 1024x600 |
|
235.00x143x6.9 | 10.1 | 10.1 | 222.72x125.28 | IPS | 1000cd/m2 | FPC-40pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | EK79001+EK73215(TFT) | |
| 10.1-inch TFT LCD/1024x600 dot matrix/IPS full viewing angle/10.1-inch high brightness TFT/LVDS interface TFT-H101A9WSIFTKN40 | TFT | 1024x600 |
|
235.00x143x6.9 | 10.1 | 10.1 | 222.72x125.28 | IPS | 1000cd/m2 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | EK79001+EK73215(TFT) | |
| 10.1-inch 1024x600 IPShigh brightness TFT/LVDS interface/with resistive touch TFT-H101A9WSIFTKR40 | TFT | 1024x600 |
|
235.00x143x6.9 | 10.1 | 10.1 | 222.72x125.28 | IPS | 1000cd/m2 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | EK79001+EK73215(TFT) | |
| 15.6-inch TFT/1920x1080 HD Color Display/IPS TFT LCD/LVDS Interface/TBD Controller TFT-H156FHDIKN30-LVDS | TFT | 1920x1080 |
|
363.8x215.9x11.9 | 15.6 | 15.6 | 344.16x193.59 | IPS | 1000cd/M2 | FPC-30 pin | LVDS | Anti-static ESD 8KV | -30~85℃ | +3.3 V | TBD | |
| 11.6 inch TFT LCD display /1920x1080 HD color display /IPS TFT LCD/TBD controller TFT-H116D01FHIWZ3N30 | TFT | 1920x1080 |
|
263.34x157.16x2.71 | 11.6 | 11.6 | 256.32x144.18 | IPS | 350cd/M2 | FPC-30PIN | eDP | Anti-static ESD 8KV | -20~70℃ | +3.3 V | TBD<TFT> | |
| 8.9 inch TFT/800x1280 color screen/IPS TFT LCD/MIPI interface/JD9365D controller TFT-H089A1WXIFT5N40 | TFT | 800x1280 |
|
125.38*202.84*2.55 | 8.9 | 8.9 | 119.28*190.85 | IPS | 500cd/M2 | FPC-40pin | FPC-40pin | Anti-static ESD 8KV | -20~70℃ | +3.3 V | JD9365D | |
| 8.0-inch IPS full-view color screen/800x1280 resolution/capacitive screen/controller JD9635/MIPI interface/Android/TFT-H080A11HDIFT4C30 | TFT LCD | 800x1280 |
|
124.6x194.1x4.7 | 8.0 | 8.0 | 107.64x172.224 | IPS | 450cd/m2 | FPC-30PIN | MIPI 4L | Anti-static ESD 8KV | -20~70℃ | 3.3V | JD9635 |
