Product type：TFT
Show contents：1920x1080
Outline size(mm) ：263.34x157.16x2.71
Size of View Window(mm)：11.6
Display size(mm) ：11.6
Effective size(mm)：256.32x144.18
Product application：technical equipment, office equipment, household appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：350cd/M2
Connection PIN Number：FPC-30PIN
Interface mode：eDP
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：TBD<TFT>

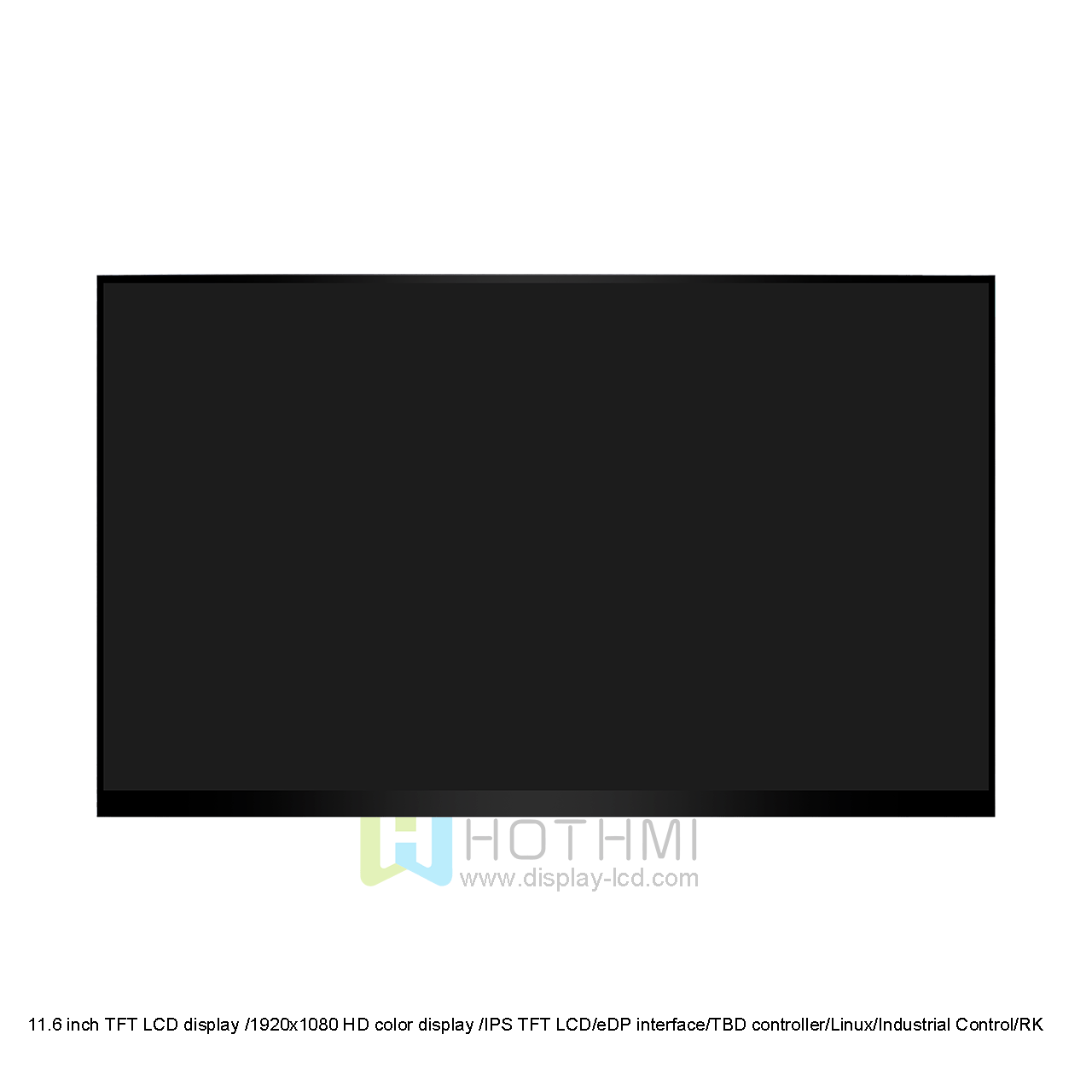

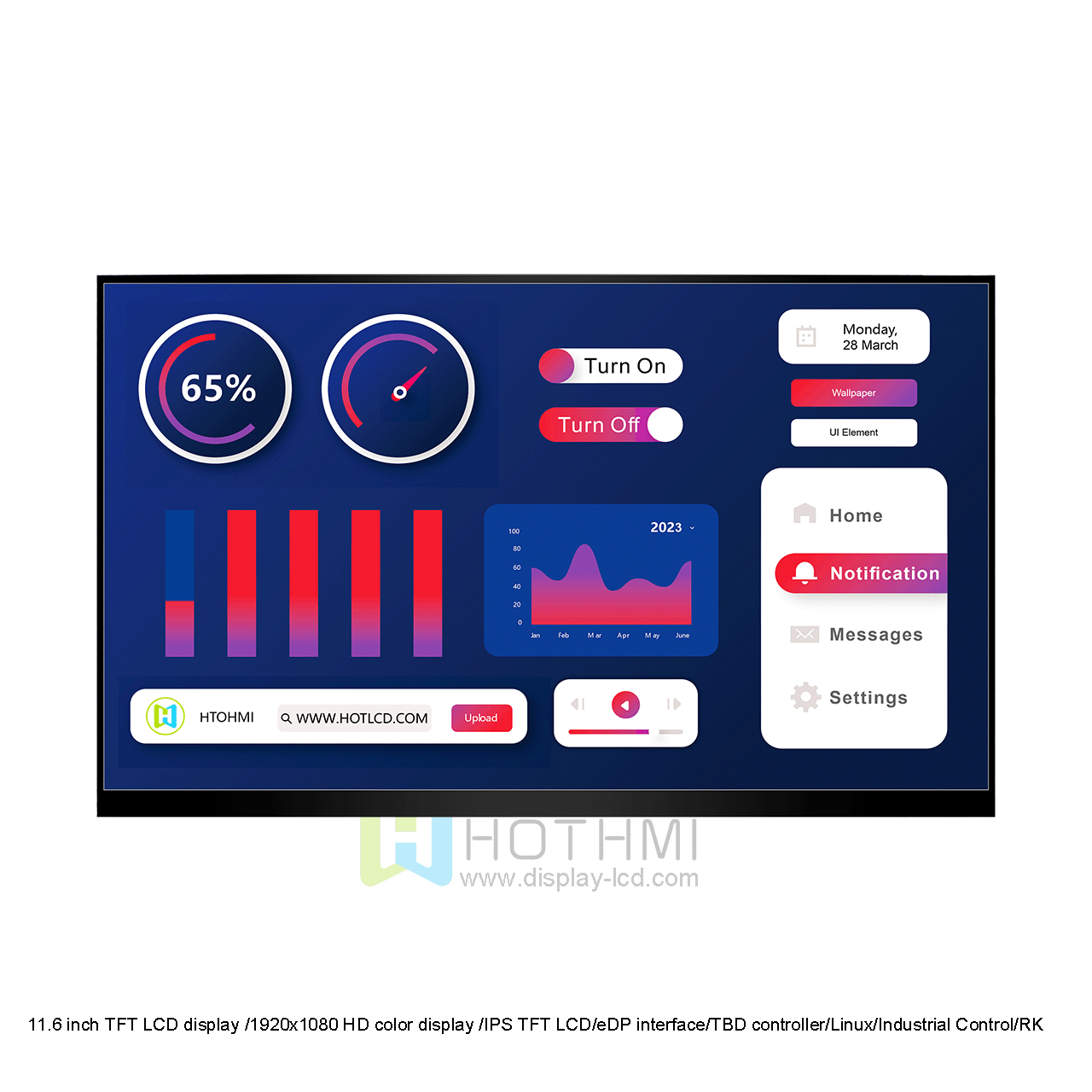

This TFT-H116D01FHIWZ3N30 11.6-inch TFT display has a resolution of 1920x1080 pixels, IPS full viewing angle, and the LCD module has a brightness of 350 nits. Although this transmissive LCD does not have a touch screen, its compact size, 3.3 volt power supply, and impressive display quality make it a great choice for projects that require portrait mode visual output without touch functionality.

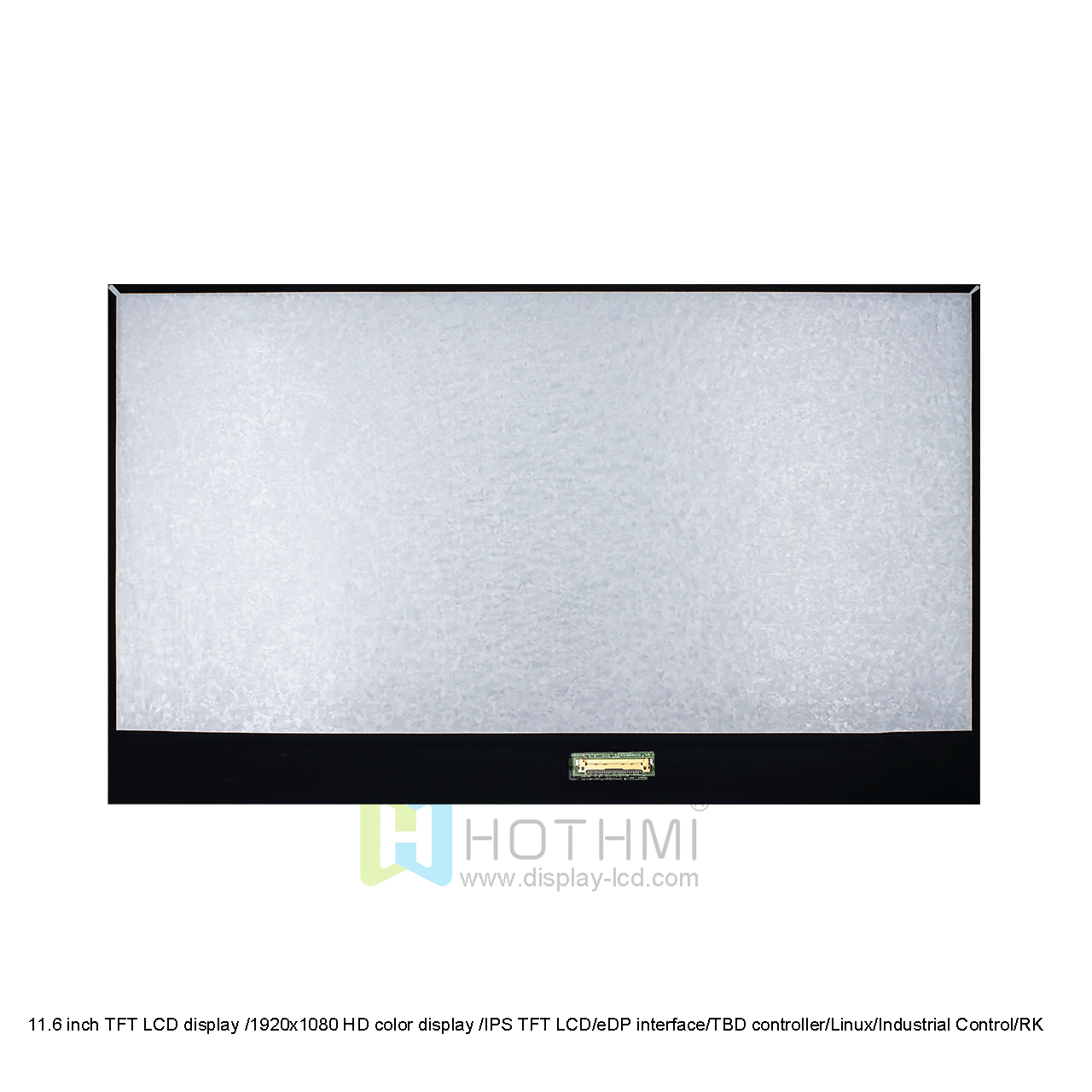

Choose eDP to meet your project requirements. This interface provides flexibility and is compatible with a wide range of Arduino models. This display uses a 30-pin FFC ZIF (Flexible Flat Cable, Zero Insertion Force) I/O connection method to ensure worry-free electrical connections. Say goodbye to connection issues and enjoy smooth operation, making your Arduino project stable and easy. This TFT LCD display uses a TBD controller for excellent performance and high reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Our displays are RoHS compliant and adhere to strict environmental and safety standards.
