With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5.7" INCH MIPI TFT LCD PANEL 640X480 LCD MODULE IPS FOR INDUSTRIAL CONTROL LCM-TFT057T1VGM2N30F | TFT LCD | 640x480 |
|
126.5×100.0×10 | 5.7 | 5.7 | 115.7x87.47 | Full view | 1000cd/m2 | 40pin | RGB | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7262(TFT),Atmel mXT640T(CTP) | |
| 5.6" Inch MIPI TFT LCD Panel 640x480 IPS Lcd Monitors For Industrial Control LCM-TFT056T1VGM2N30F | TFT LCD | 640x480 |
|
126.5×100.0×9.5 | 5.6 | 5.6 | 115.7x87.47 | Full view | 250cd/m2 | 30pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 4.5" INCH TFT LCD DISPLAY MODULE 480X854 MCU8080 LCD MONITORS for 3D printers TFT-H045C1FWTNT0N40 | TFT LCD | 480x854 |
|
58.24 ×105.59×1.30 | 4.5 | 4.5 | 55.44 X 98.64 | 12H | 40pin | MCU | low power consumption | -20~70℃ | 3.3V | NT35510S | ||
| 4.3" Inch Resistive Touch Panel Tft Lcd 480x272 Ips Lcd Monitors Tft Lcd Display Manufacturer TFT-H043A2WQIST5R40 | TFT LCD | 480x272 |
|
105.5x67.2x4.0 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 40pin | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | SC7283 | |
| 4.3" Inch Tft Lcd Display 480x272 IPS LCD Monitors sunlight readable TFT LCD Display Manufacturer TFT-H043A2WQISTKN40 | TFT LCD | 480x272 |
|
105.42x67.07x3.00 | 4.3 | 4.3 | 95.04x53.86 | Full view | 1200cd/m2 | 40PIN | RGB | 抗靜電ESD 8KV | -30~80℃ | 3.3V | SC7283 | |
| 4.3 Inch TFT LCD Vertical Screen 480x800 IPS LCD Monitors TFT LCD Display Manufacturer TFT-H043B16WVINT4N40 | TFT LCD | 480x800 |
|
60.86x102.57x2.3 | 4.3 | 4.3 | 60.86x102.57x2.3 | Full view | 400cd/m2 | 40pin | MCU | Anti-static ESD 8KV | -20~70℃ | 2.8v | NT35510 | |
| 4.7 Inch TFT LCD Panel 720x1280 IPS LCD Monitors TFT LCD Display Manufacturer TFT-H047A3HDIST4N20 | TFT LCD | 720x1280 |
|
60.3x111.4x1.75 | 4.7 | 4.7 | 58.104x103.296 | Full view | 400cd/m2 | 20pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 2.8V | ST7703 | |

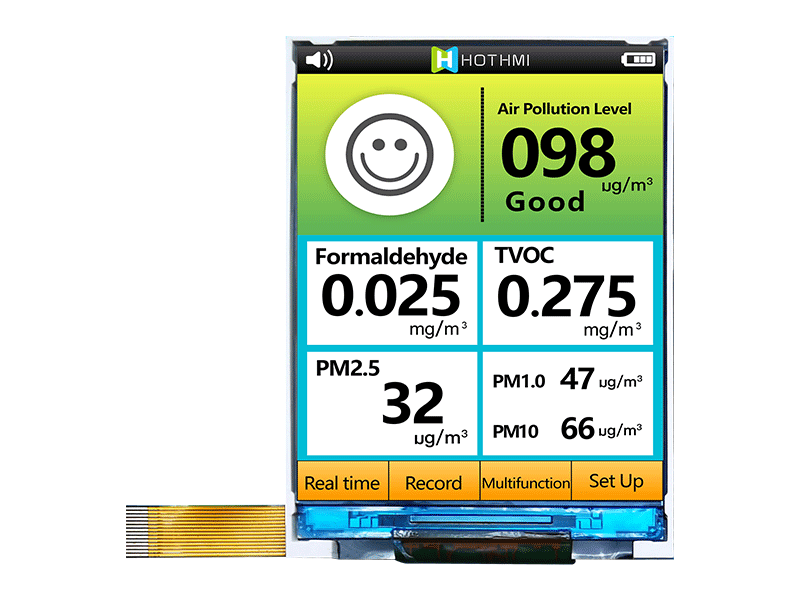

| 2.4 Inch SPI TFT LCD Display IPS Panel Screen 240x320 Lcd Display Manufacturers TFT-H024C4QVIST5N14 | TFT LCD | 240x320 |
|
42.52x59.86x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full view | 500cd/m2 | 14pin | SPI | Anti-static ESD 8KV | -20~70℃ | 2.8V | ST7789 | |
| 1.14 Inch SPI TFT LCD Display IPS Panel Screen 135x240 For Smart Appliances TFT-H011A1QCIST3N10 | TFT LCD | 135x240 |
|
17.6x31.0x1.65 | 1.14 | 1.14 | 14.86x24.91 | Full view | 350cd/m2 | 10pin | SPI | Anti-static ESD 8KV | -20~70℃ | 2.8v | ST7789H2 | |
| 10.1 Inch LCD Display 1024x600 IPS TFT LCD Panel TFT LCD Display Manufacturer TFT-101H101A5WSIFT3N50 | TFT LCD | 1024x600 |
|
235.00×143.00×3.00 | 10.1 | 10.1 | 222.72x125.28 | Full view | 300cd/m2 | 50pin | TTL | 抗靜電ESD 8KV | -20~70℃ | 3.3V | EK79001+EK73215 |
