Product type：Graphic LCD Module
Show contents：192x64
Outline size(mm) ：100.0x60.0x8.2
Size of View Window(mm)：82.0x31.0
Display size(mm) ：98.27x79.16
Point spacing(mm)：0.41x0.41
Product application：Instruments
Visual angle：6H
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：KS0108+KS0107

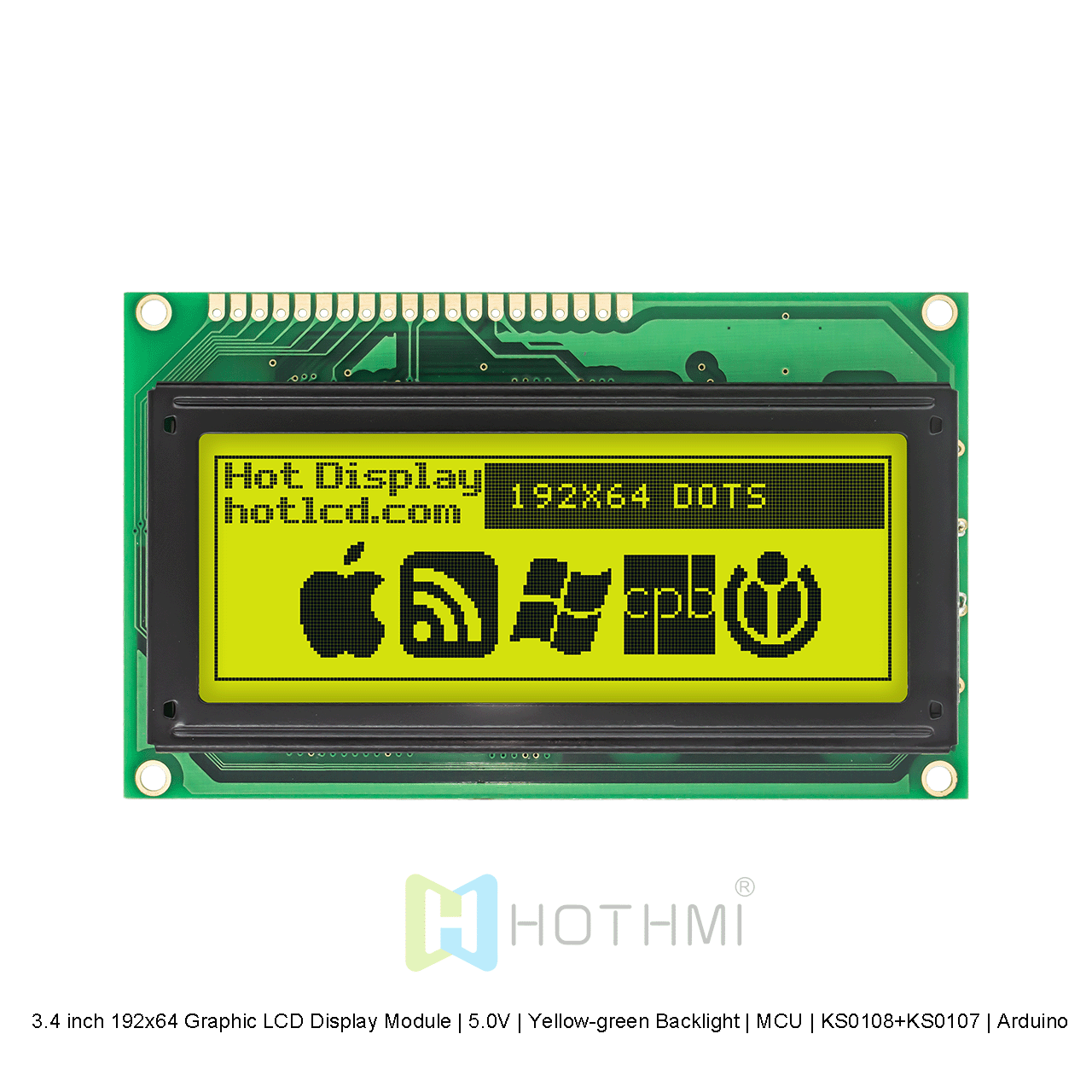

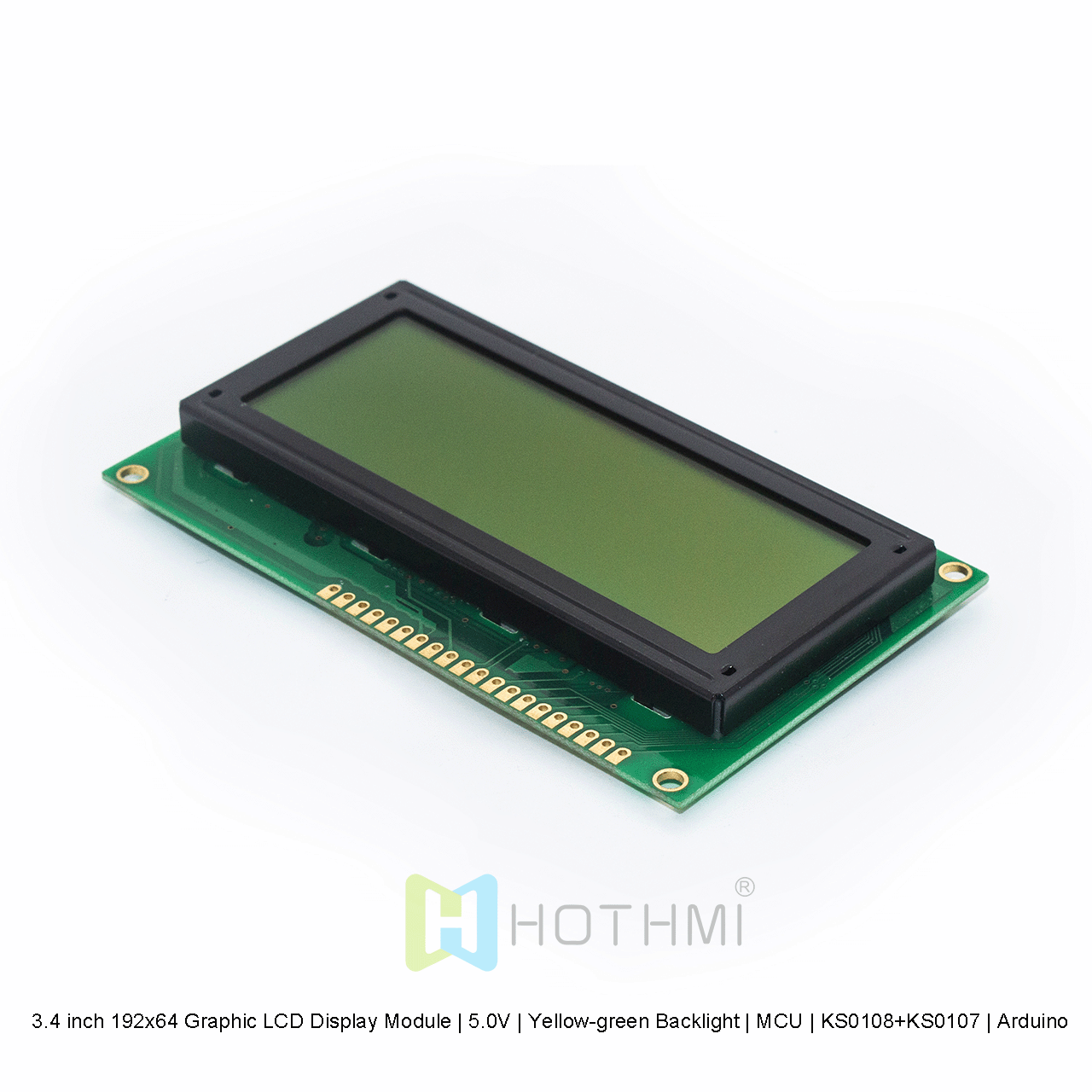

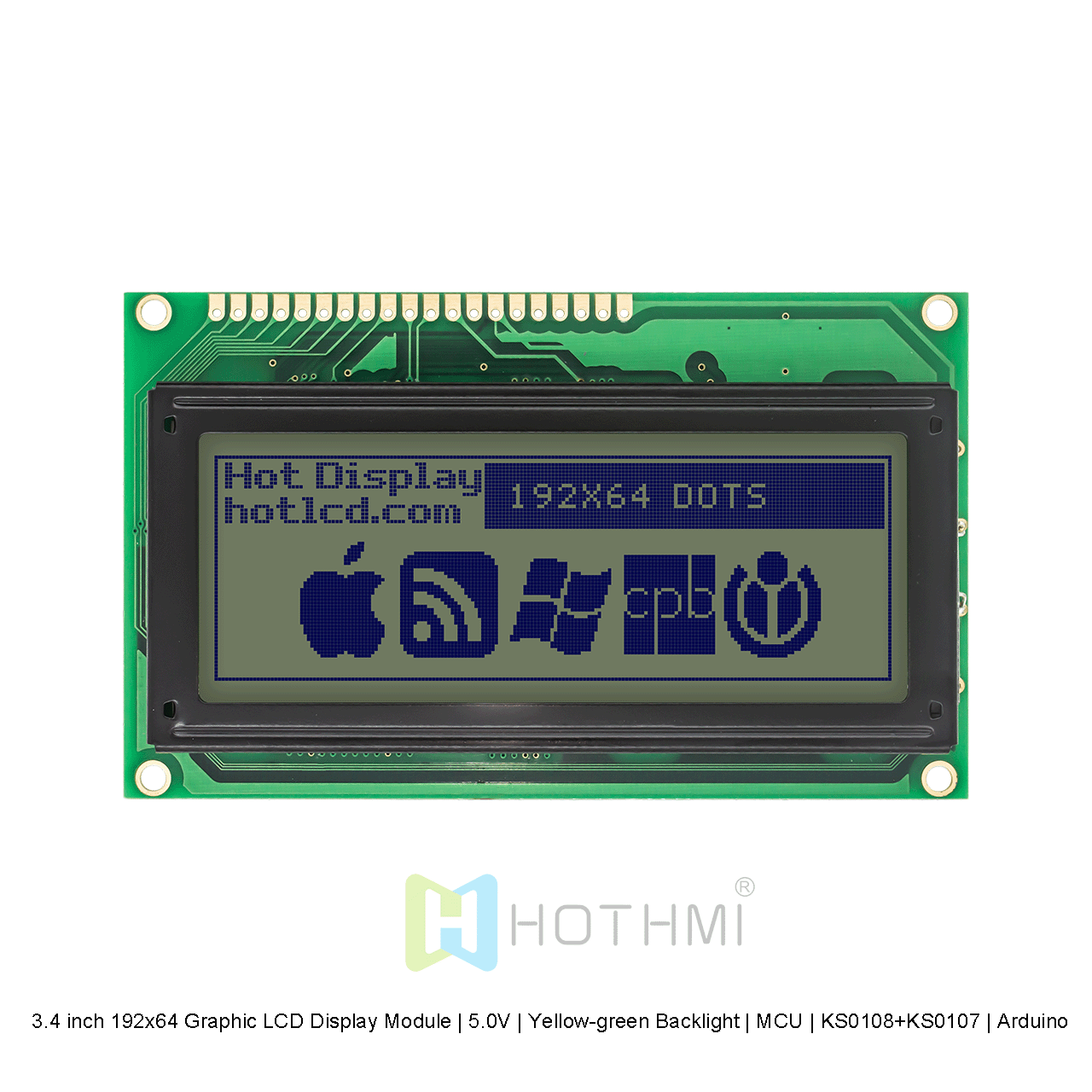

The 3.4 inch 192x64 Graphic LCD Display Module displays white pixels on a black background. This transflective LCD display is carefully designed. In bright environments, the image is reflected to the viewer's eyes due to the reflective nature of the polarizer. In dark environments, the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. With multi-language word lists available, this product model is designed to withstand harsh operating conditions and works well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates on a 5V supply voltage, and is RoHS compliant.
