產品搜尋
類型：?jiǎn)紊玊FT
顯示像素：320x240
外形尺寸 ：159.2x111.0x6.7
VA尺寸：5.7
AA尺寸 ：5.7
點間距mm：0.36x0.36
有效尺寸mm：115.2x86.16
應用：戶外儀器儀表
視角：6H
背光/亮度：500cd/m2
引腳：20pin
接口方式：MCU
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：3.3V
驅動芯片：ST7511

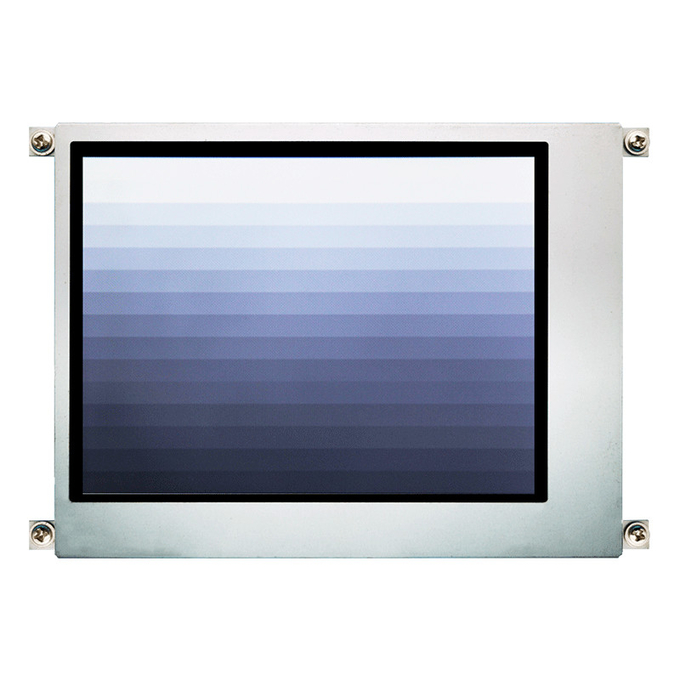

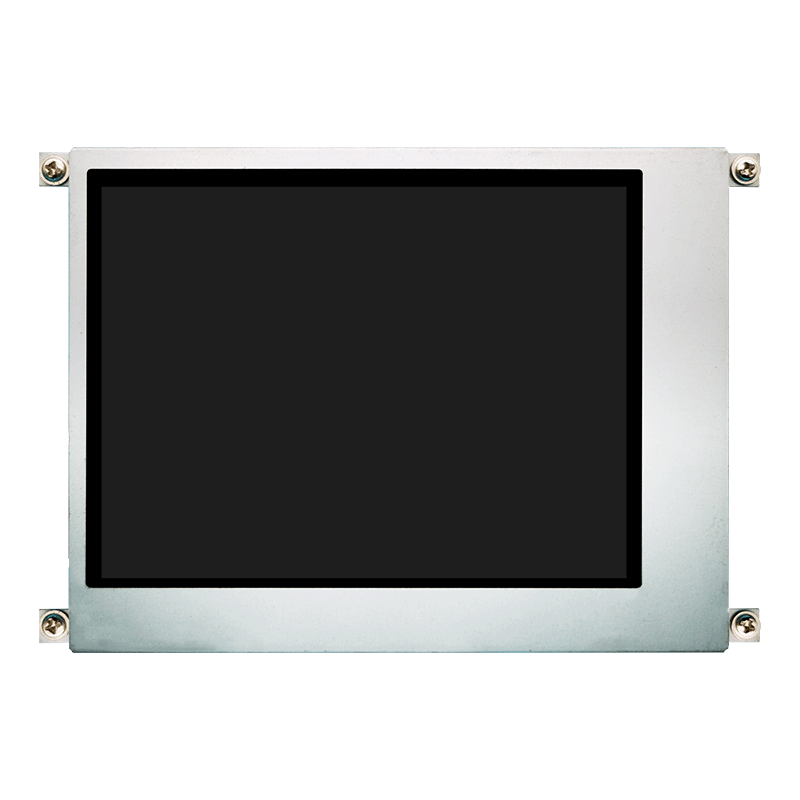

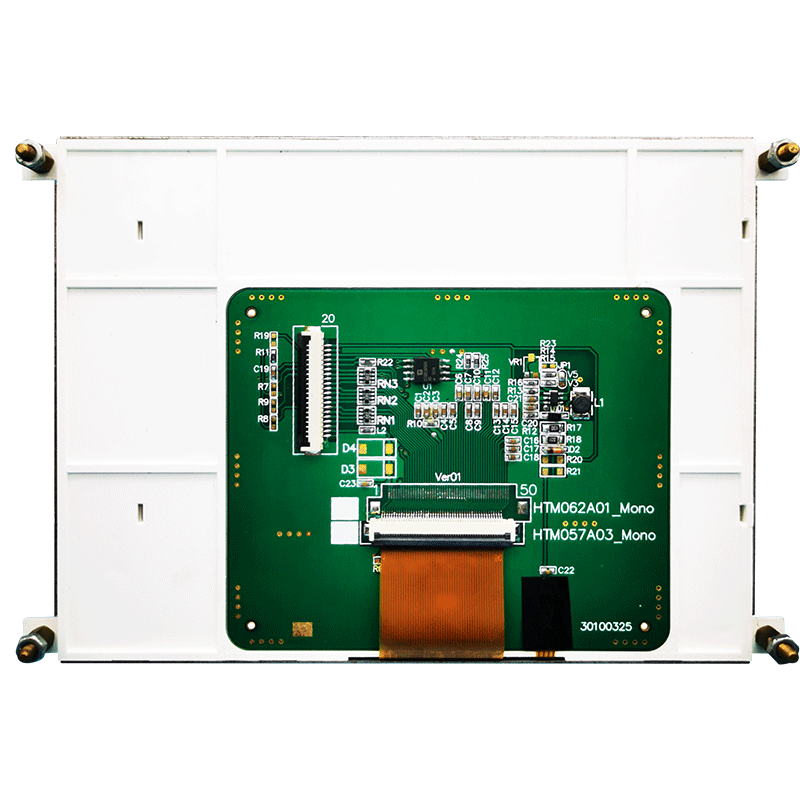

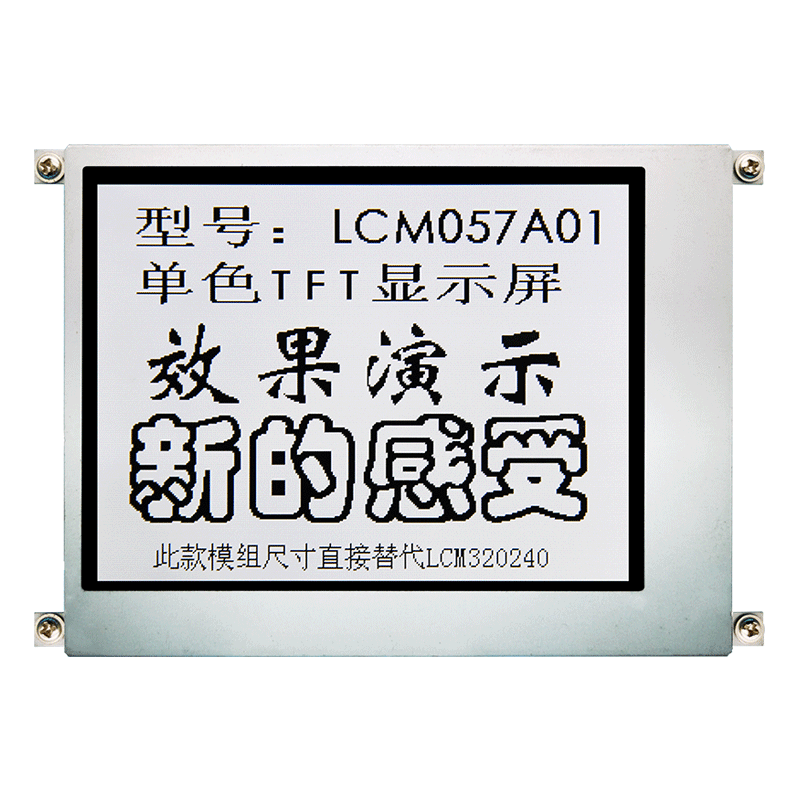

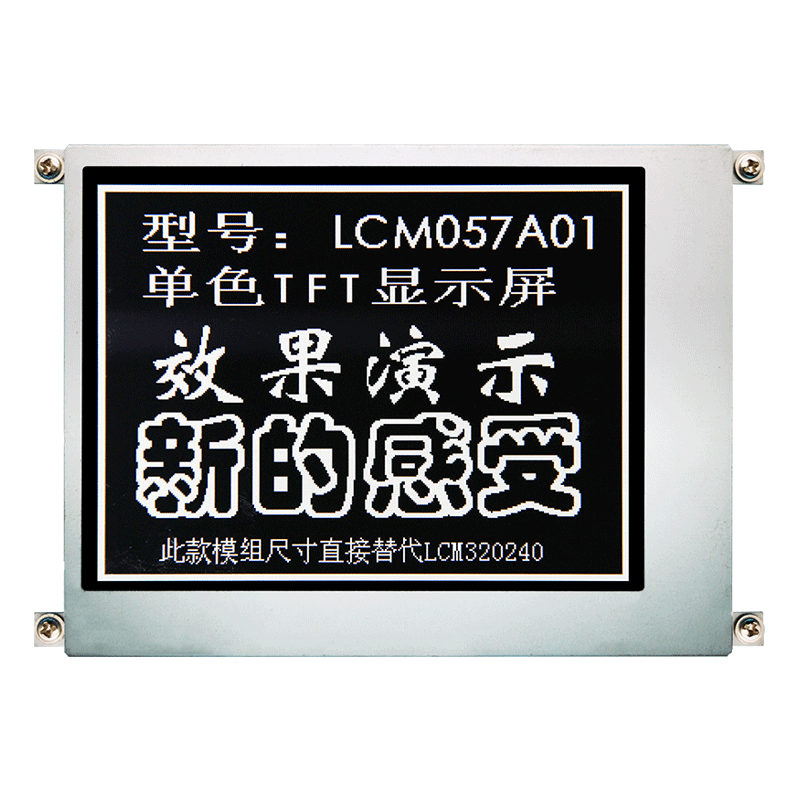

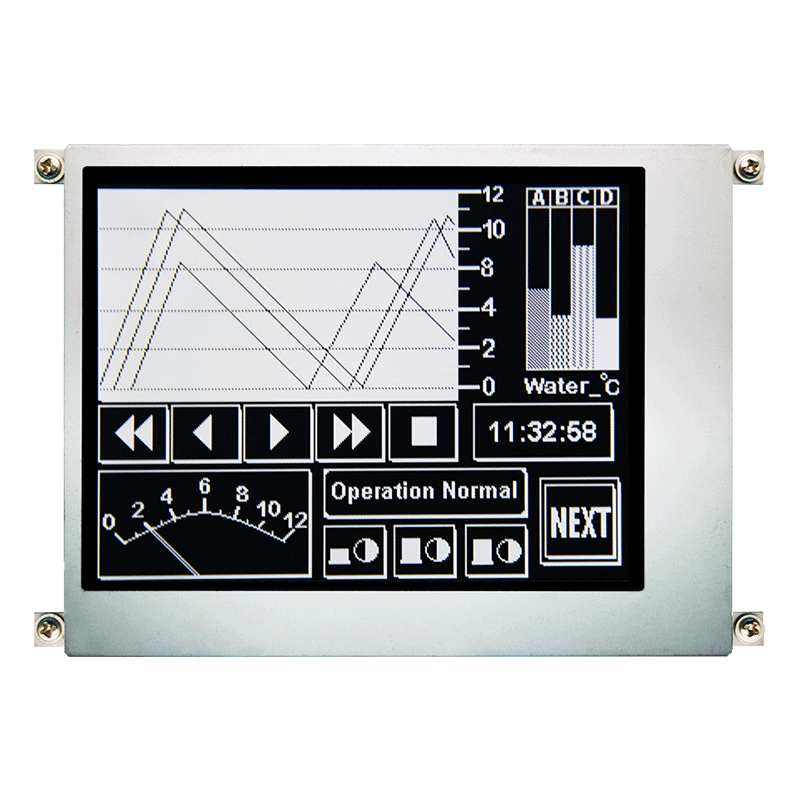

隆重推出我們專為工業儀表應用而設計的高品質專業單色 TFT 顯示屏。 我們的 5.7 英寸顯示屏分辨率為 320x240，有效尺寸為 115.2x86.16mm，可提供清晰準確的數據可視化表示。
我們的單色 TFT 顯示屏采用優質材料制成，尺寸為 159.2x111.0x6.7mm，是工業儀表應用的理想尺寸。 5.7" 視場窗口尺寸確保最大可見度，6H 視角保證從多個角度準確觀看。
我們的單色 TFT 顯示屏配備強大的 500cd/m2 背光，即使在明亮的陽光下也能提供出色的可視性。 該顯示器采用 20PIN1.0 連接方式，工作電壓為 3.3V，可輕松集成到您的系統中。
顯示器的接口方式采用MCU，采用ST7511驅動芯片型號供電，保證快速高效的處理。 我們的單色TFT顯示屏的工作溫度范圍為-20~70度，適合在各種環境下使用。
雖然我們的單色 TFT 顯示器是專業的且成本高，但其獨特的功能和卓越的品質使其成為準確度和精確度至關重要的工業儀器應用的理想選擇。
General Feature
| Item | Standard Value | Unit | ||
| Display Size | 5.7 | Inch | ||
| Number of Pixels | 320(H)* 240(V) | dots | ||
| Active Area | 115.2x86.16mm | mm | ||

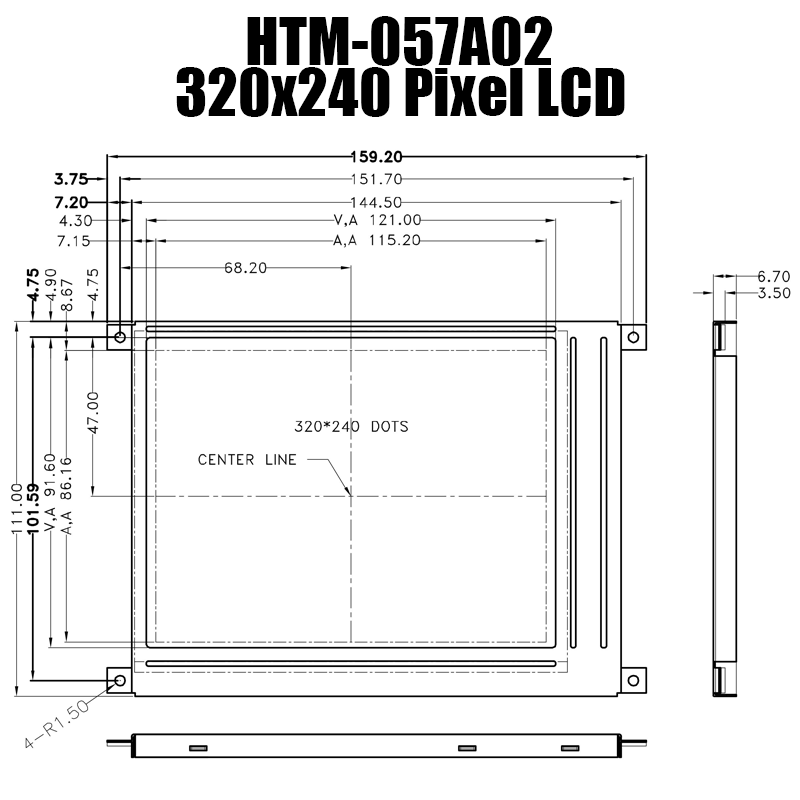

| Outline Dimension | 159.2x111.0x6.7 | mm | ||
| Viewing Direction | FULL O'clock | - | ||
| Interface | MCU | - | ||
| Driver IC | ST7511 | - | ||
| Driver Condition | VCI=3.3V(Typ) | V | ||
| Backlight | - | - | ||
| Touch Panel | WHITOUT TOUCH | |||
| CTP Driver IC | - | - | ||
| Driver Condition | VDD=3.3 | V | ||
| TFT Operation AT | -20 ～ +70 | ℃ | ||
| TFT Storage AT | -30 ～ +80 | ℃ | ||
Dot Size | 0.34x0.34 | mm | ||
Dot Pitch | 0.36x0.36 | mm | ||
TFT Pin Description
| No | Pin Name | Descriptions |
| 1 | VSS | Power Supply(0V) |
| 2 | VDD | Power Supply(3.3V) |
| 3 | NC | |
| 4 | RS | Data/Comman Identification Pin |
| 5 | /WR | Read/Write Signal |
| 6 | /RD | Data Read Signal |
| 7 | DB0 | Data Bus Line(DB0-DB7) DB6 as Serial SCK Input For ZK DB7 as Serial Data Input For ZK |
| : | : | |
| 13 | DB6 | |
| 14 | DB7 | |
| 15 | /CS | Chip Select Input Pin For LCD |
| 16 | /REST | Reset Signal |
| 17 | CS# | Chip Select Input Pin For ZK |
| 18 | SO | Serial Data Output For ZK |
| 19 | FGND | Equipment GND |
| 20 | LEDA | Backlight Enable Pin(H:Open) |
