The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

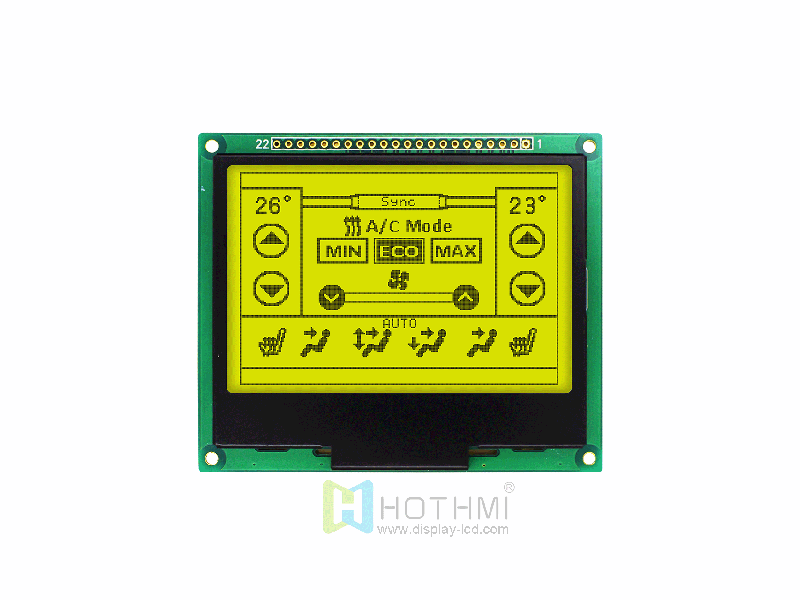

| 3.4" 240x160 Graphic LCD Dot Matrix Module | STN+ | Yellow-Green Backlight | MCU | ST7529 |Arduino HTM240160F-31W-N3P | Graphic LCD Module | 240x160 |
|
87.0x73.0x10.0 | 72.9x48.0 | 67.42x44.94 | 0.281x0.261 | 6H | 18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7529 | ||
| 3.4 inch 240x160 Graphic LCD Dot Matrix Module | STN- | Blue Background White Text | MCU | ST7529 | Arduino HTM240160F-25W-N3P | Graphic LCD Module | 240x160 |
|
87.0x73.0x10.0 | 72.9x48.0 | 67.42x44.94 | 0.281x0.261 | 6H | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7529 | ||

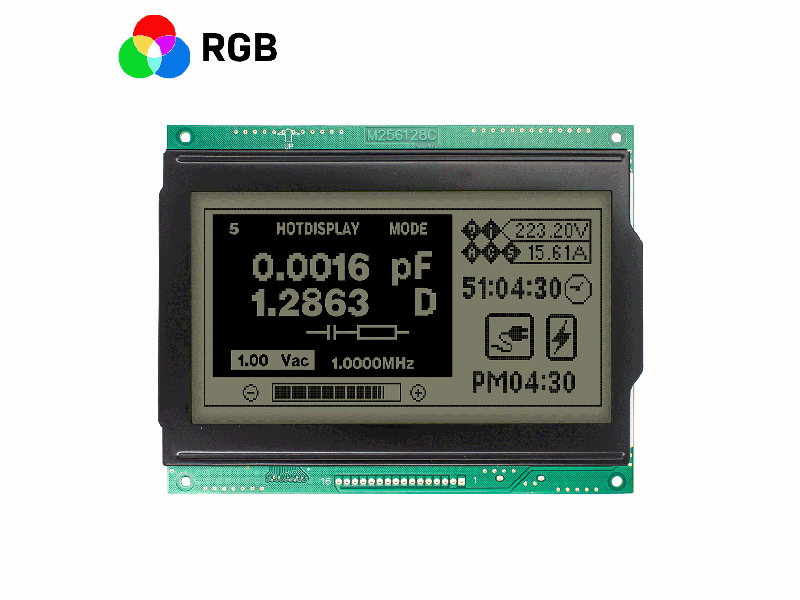

| 5.1 inch 256x128 Graphic LCD Display Module | FSTN+| Red, Green and Blue Backlight | MCU | NT7086/RA0086 | Fully Transparent Polaroid | Arduino | Graphic LCD Module | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NT7086/RA0086 | ||

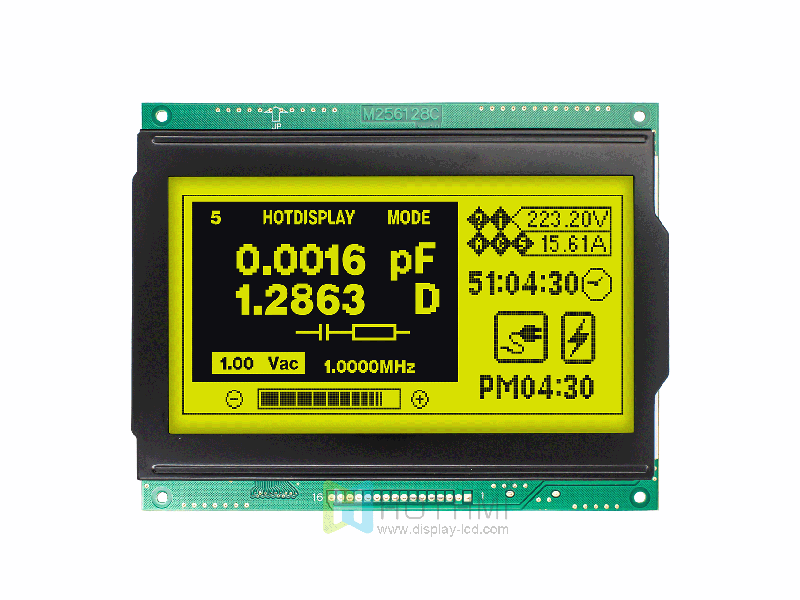

| 5.1 inch 256x128 Graphic LCD Display Module | STN Positive Display | Yellow-green Backlight | MCU | NT7086/RA0086 | Arduino HTM256128C-11Y-A5P | Graphic LCD Module | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NT7086/RA0086 | ||
| 5.1 inch 256x128 Graphic LCD Display Module | STN Positive Display | White Backlight | MCU | Arduino HTM256128C-11W-A5P | Graphic LCD Module | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NT7086/RA0086 | ||

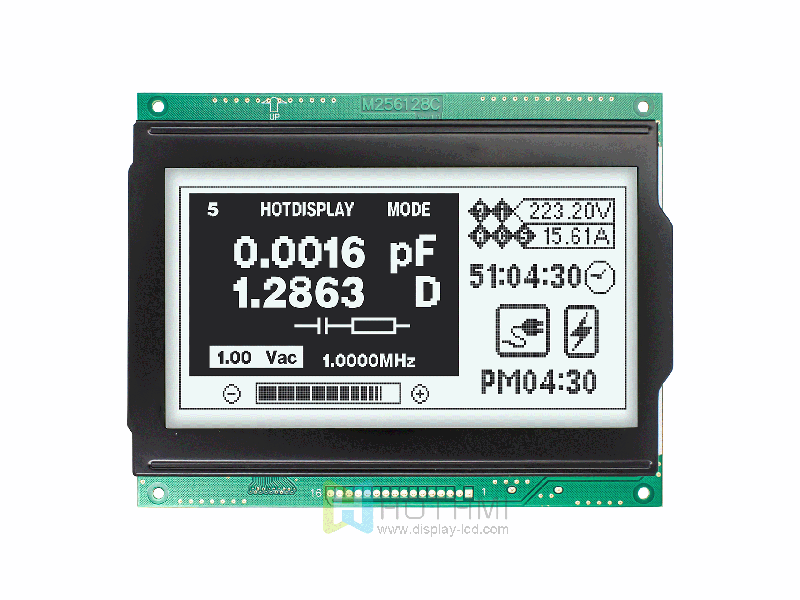

| 5.1 inch 256x128 Graphic LCD Display Module | DFSTN- | MCU | NT7086/RA0086 | White on Black | Arduino HTM256128C-41W-A5P | Graphic LCD Module | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NT7086/RA0086 | ||
| 5.1 inch 256x128 Graphic LCD Display Module/FSTN+/White Backlight/MCU/NT7086/RA0086/ARDUINO HTM256128C-31W-A5P | Graphic LCD Module | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NT7086/RA0086 | ||
| 5.1 inch 256x128 Graphic LCD Display Module | STN+ | Yellow-green Backlight | MCU | Arduino HTM256128C-01Y-A5P | Graphic LCD Module | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | 16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NT7086/RA0086 | ||

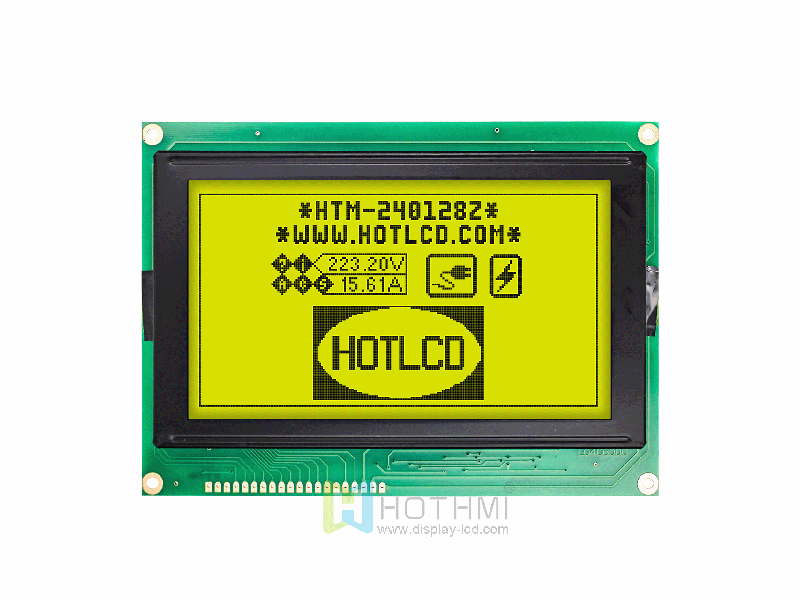

| 5.1 inch 240x128 Graphic LCD Module/5.1 inch Graphic LCD/MCU/RA8803/Red, Green, Blue Backlight |Arduino HTM240128Z-35S-A5P | Graphic LCD Module | 240x128 |
|
144..0x104.0x14.6 | 114.0x64.0 | 107.95x57.55 | 0.45x0.41 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | RA8803 | ||
| 5.1 inch 240x128 Graphic LCD Module | 240 x 128 inch Graphic LCD | MCU | RA8803 |5.0v|Arduino HTM240128Z-11Y-A5P | Graphic LCD Module | 240x128 |
|
144..0x104.0x14.6 | 114.0x64.0 | 107.95x57.55 | 0.45x0.41 | 6H | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | RA8803 |
