Product type：TFT
Show contents：240x320
Outline size(mm) ：42.52x59.86x2.2
Size of View Window(mm)：2.4
Display size(mm) ：2.4
Effective size(mm)：36.72x48.96
Product application：Handheld devices
Visual angle：IPS
Backlight type or brightness：800cd/m2
Connection PIN Number：FPC-45 pin
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+2.8 V
Driver chip model：ST7789V

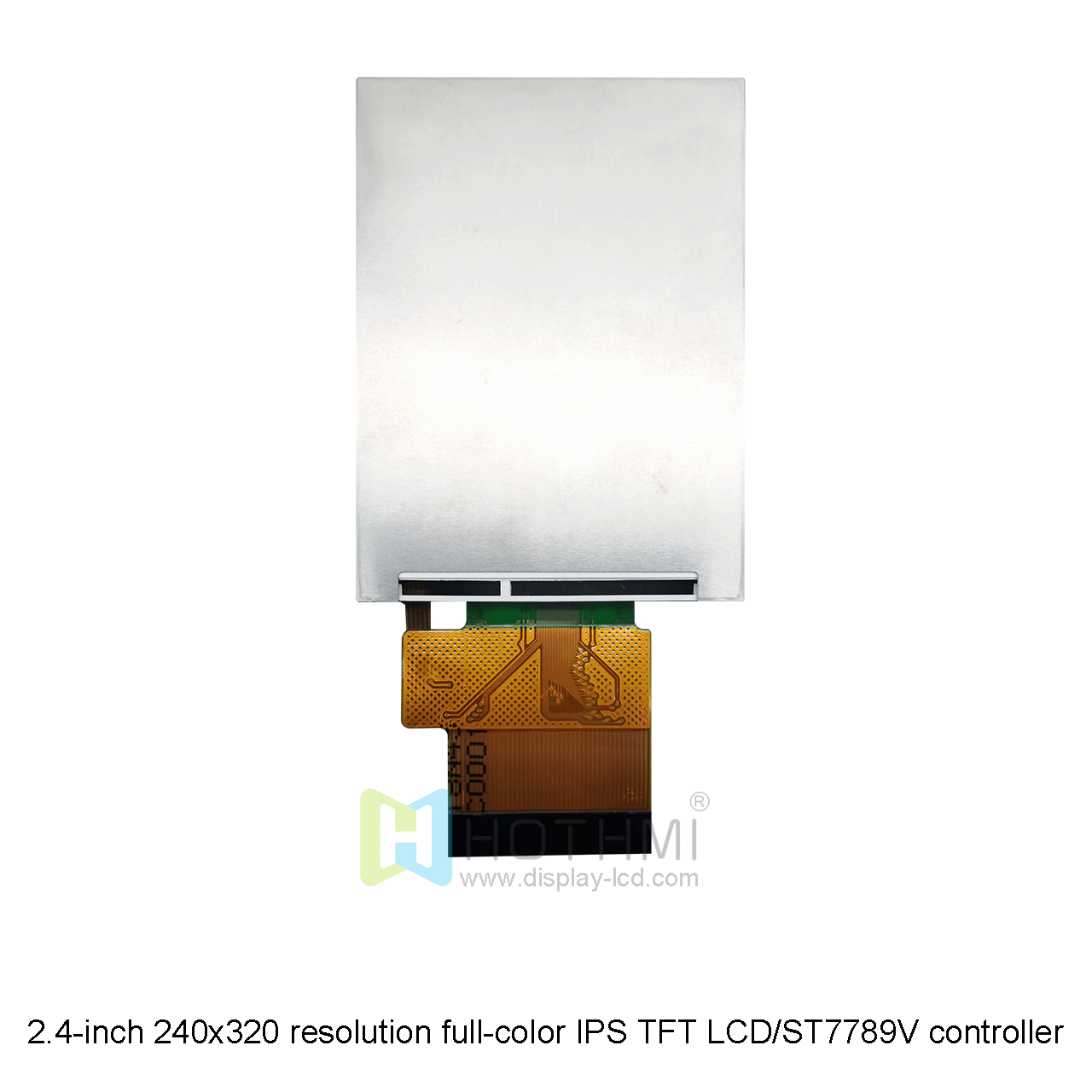

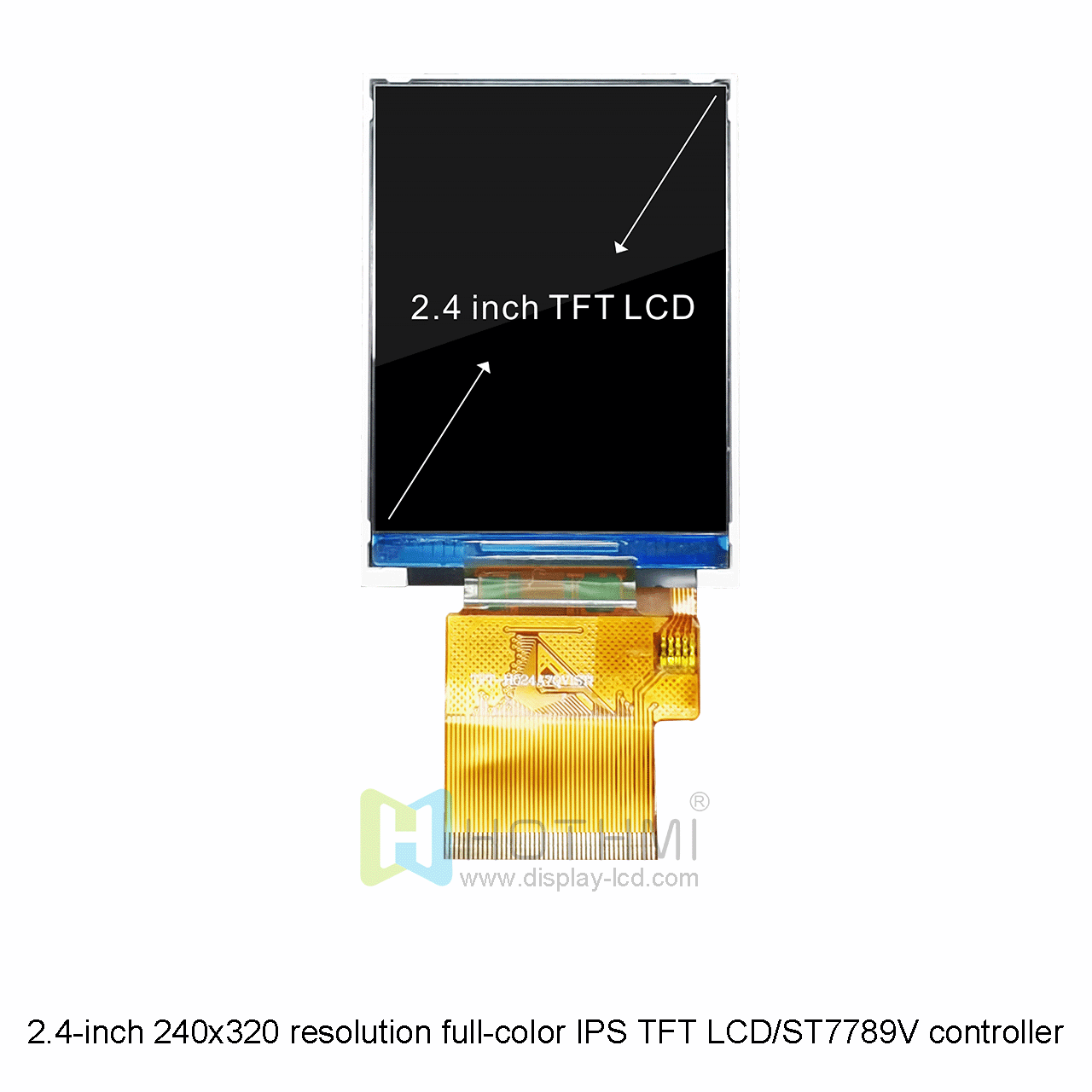

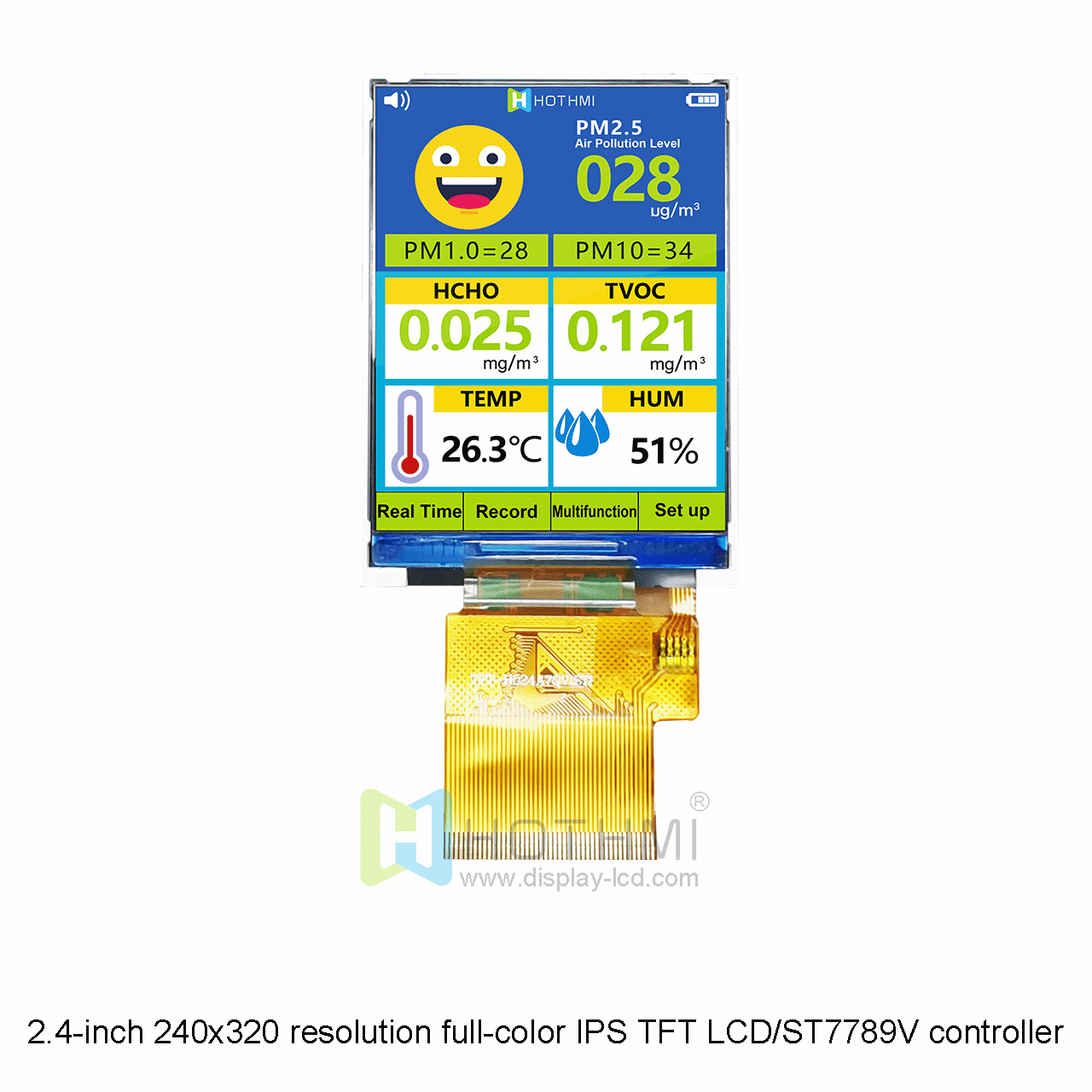

This standard 2.4-inch 240x320 resolution full-color TFT LCD/IPS full-viewing angle high brightness display/ST7789V controller TFT-H024A7QVIST8N45 has a 240x320 pixel resolution, full-viewing angle display, and a standard brightness LED backlight of 800 nits. This transmissive LCD is compact and uses a 2.8 low-voltage power supply, making this display ideal for handheld devices,
This TFT LCD display uses a 45-pin FPC connection, providing a safe and reliable electrical connection, allowing you to focus on your project because you know your display will perform at its best. This TFT LCD display is powered by the ST7789V controller, which provides excellent performance and reliability. Popular industries include the Internet of Things, industrial automation, consumer electronics, test and measurement instruments, and handheld devices. They are also great for DIY or prototyping projects due to their compatibility with Arduino. It enables fast and efficient communication between Arduino and the display, ensuring smooth data transfer and real-time updates. The interface provides flexibility and compatibility with a wide range of Arduino models. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
