Product type：TFT Module
Show contents：800x480

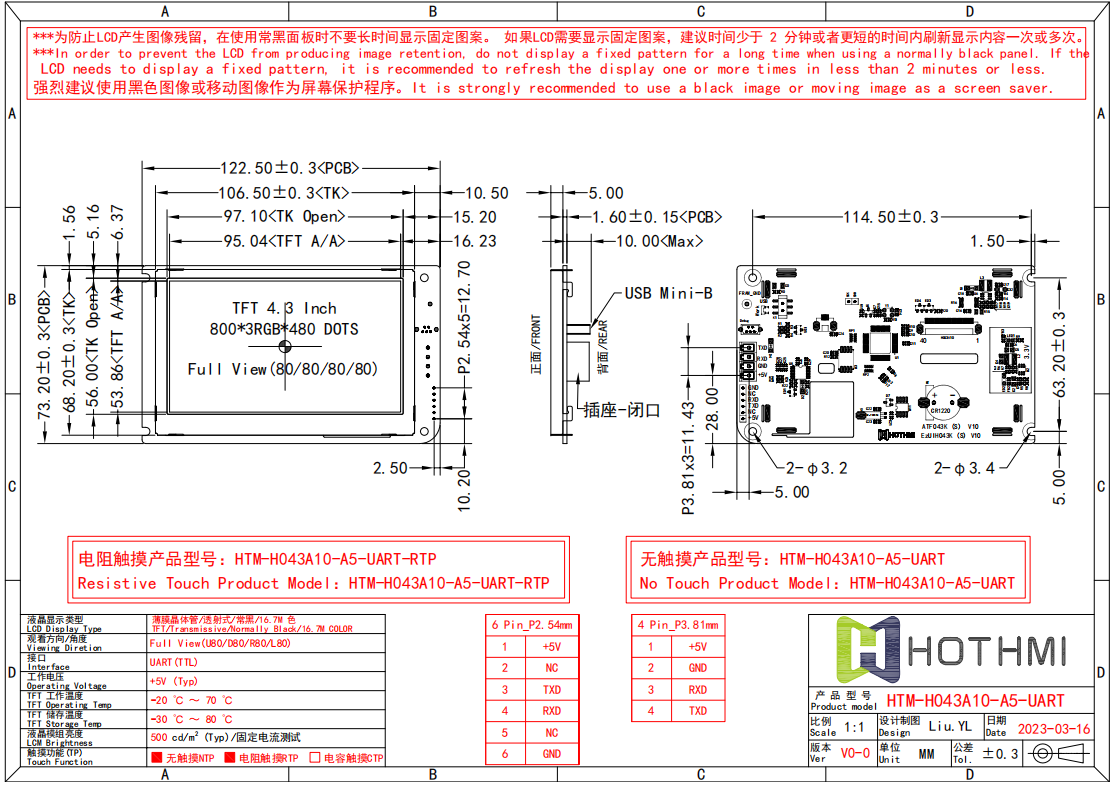

Outline size(mm) ：122.5x73.2x5.0
Size of View Window(mm)：4.3

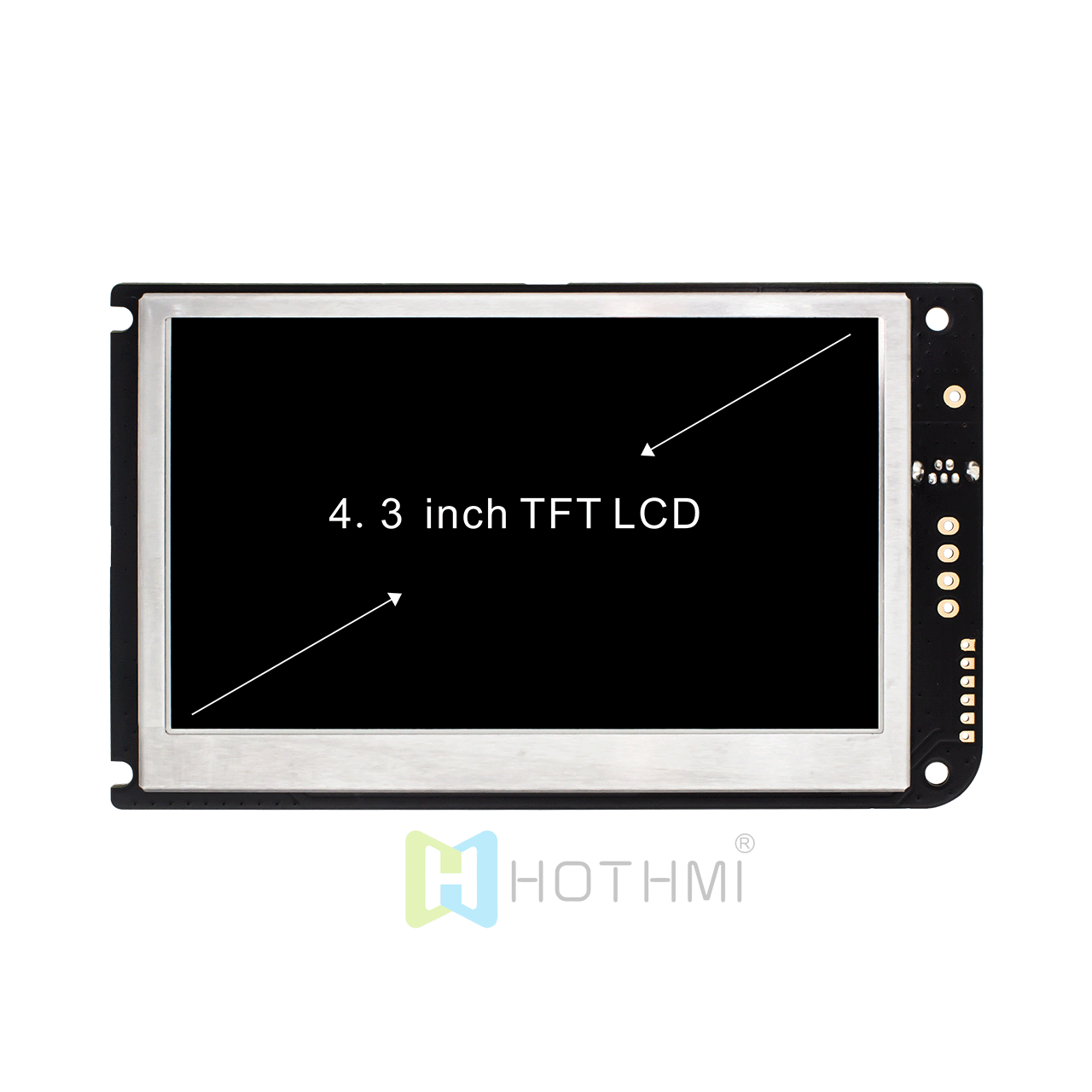

Display size(mm) ：4.3
Effective size(mm)：95.04x53.86
Product application：industrial control systems, handheld electronic devices,
Visual angle：IPS
Backlight type or brightness：500cd/m2
Interface mode：UART
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V

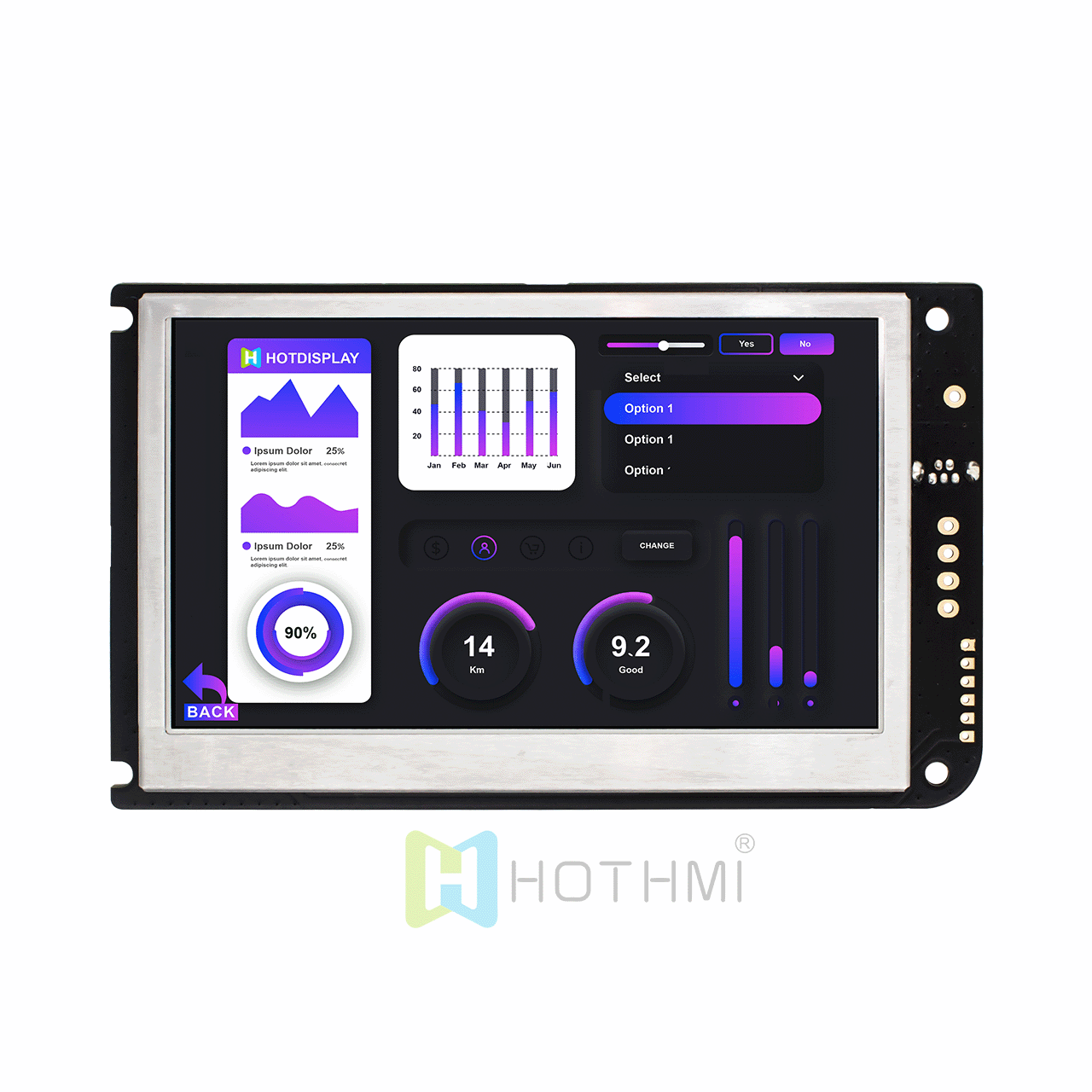

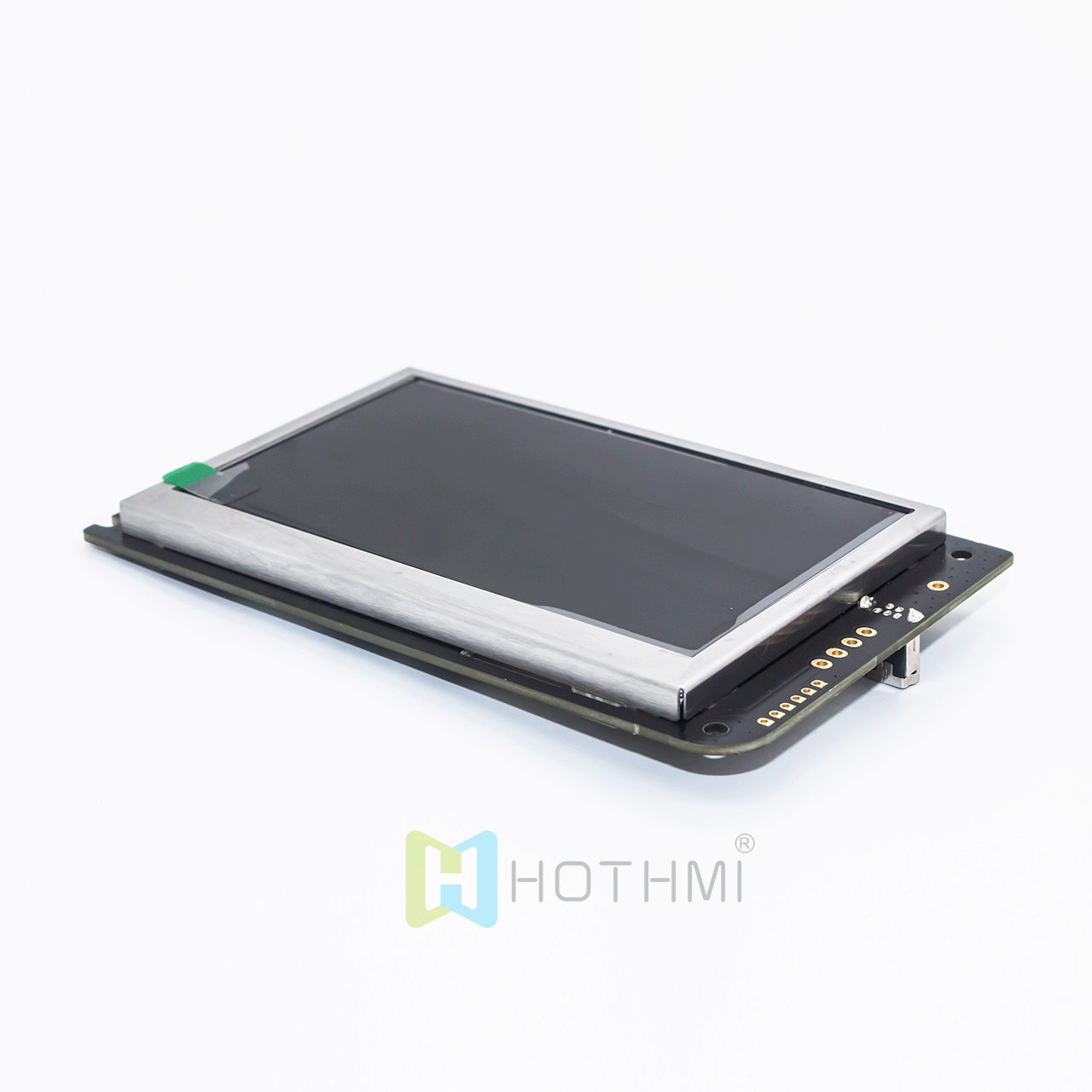

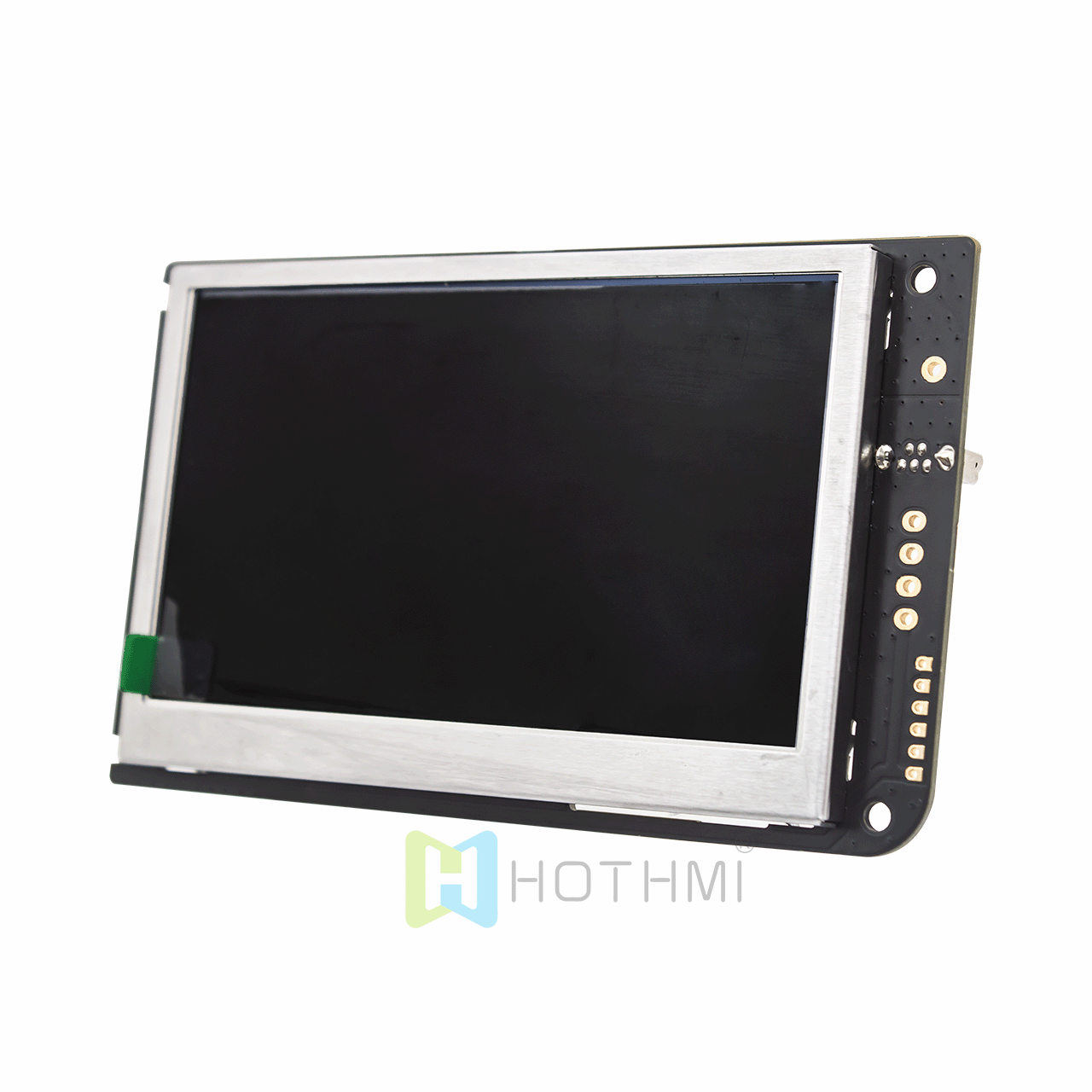

4.3-inch color capacitive touch TFT display module/4.3-inch UART smart serial screen/800x480 resolution/IPS full viewing angle TFT with board module HTM-H043A10-A5-UART is a 4.3-inch color serial display. It is an IPS full viewing angle display, which will show good results no matter which direction you watch it from. The standard brightness LED backlight is 500 nits, with moderate brightness. This model is a non-touch version, and we can also customize it with touch function for you. This transmissive LCD requires a 5V voltage power supply, UART interface, HOTDISPLAY UART display consists of two parts: serial screen hardware and attached serial screen software:

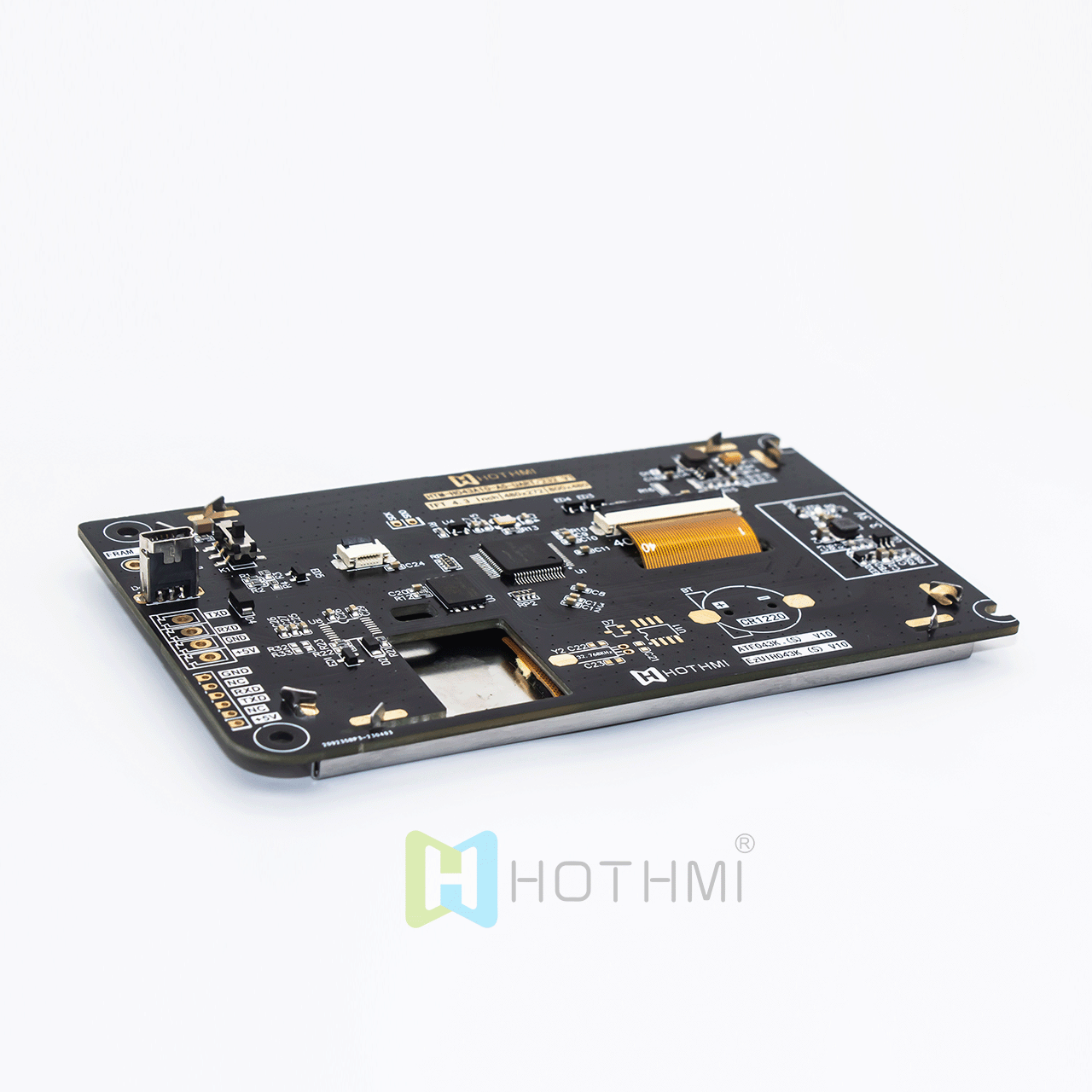

1. The hardware part includes processor, LCD screen, resistive touch screen or capacitive touch screen, FLASH storage, RS232 or 485 serial port chip, audio and video decoding chip, SD card slot, etc. Some models include WIFI, 4G, Bluetooth, voice recognition, face recognition, fingerprint recognition and other modules.
2. The operating software is generally divided into two parts, namely the system software running on the UART display and the interface development software "UI Editor" running on the PC Windows operating system. EZUI is the program debugging software.
The user first uses EZUI (ATFC) to create an ".ERS file", and then downloads the compiled ".ERS file" to the FLASH of the serial display through the UART port or USB port of the serial display or SD card. HOTDISPLAY UART display is widely used in dozens of industries and fields such as industrial automation, power, telecommunications, environmental protection, medical care, finance, petroleum, chemical industry, transportation, energy, geology, metallurgy, public query monitoring, smart home appliances, transportation tracks, data centers, charging piles, power medical care, national defense security, and shared equipment.
