Product type：UART board module
Show contents：240x240
Outline size(mm) ：35.6X37.74X6.31
Size of View Window(mm)：1.3
Display size(mm) ：1.3
Effective size(mm)：32.4X32.4
Product application：Handheld devices, mini home appliances
Visual angle：IPS
Backlight type or brightness：300cd/m2
Connection PIN Number：4pin
Interface mode：UART
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：ST7796

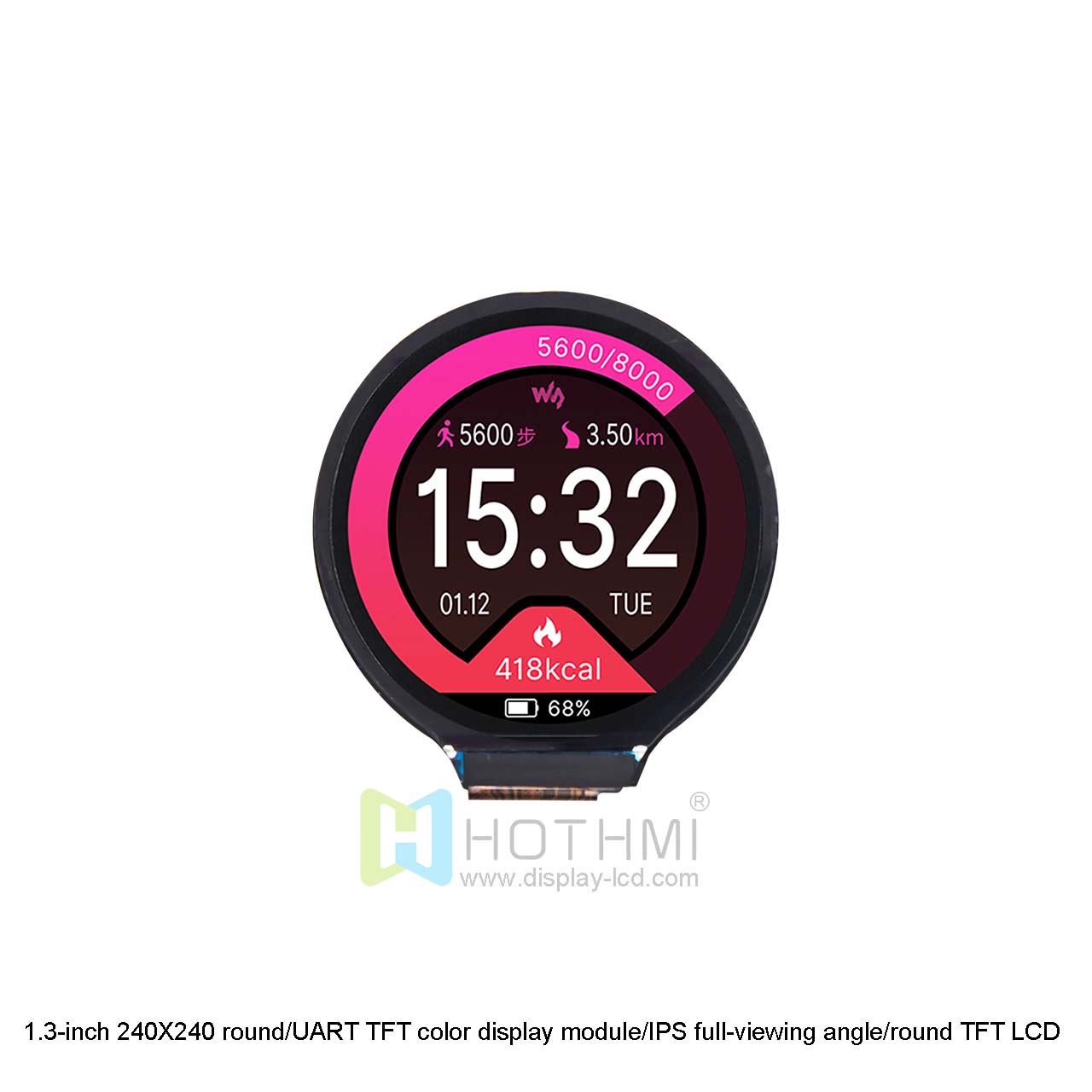

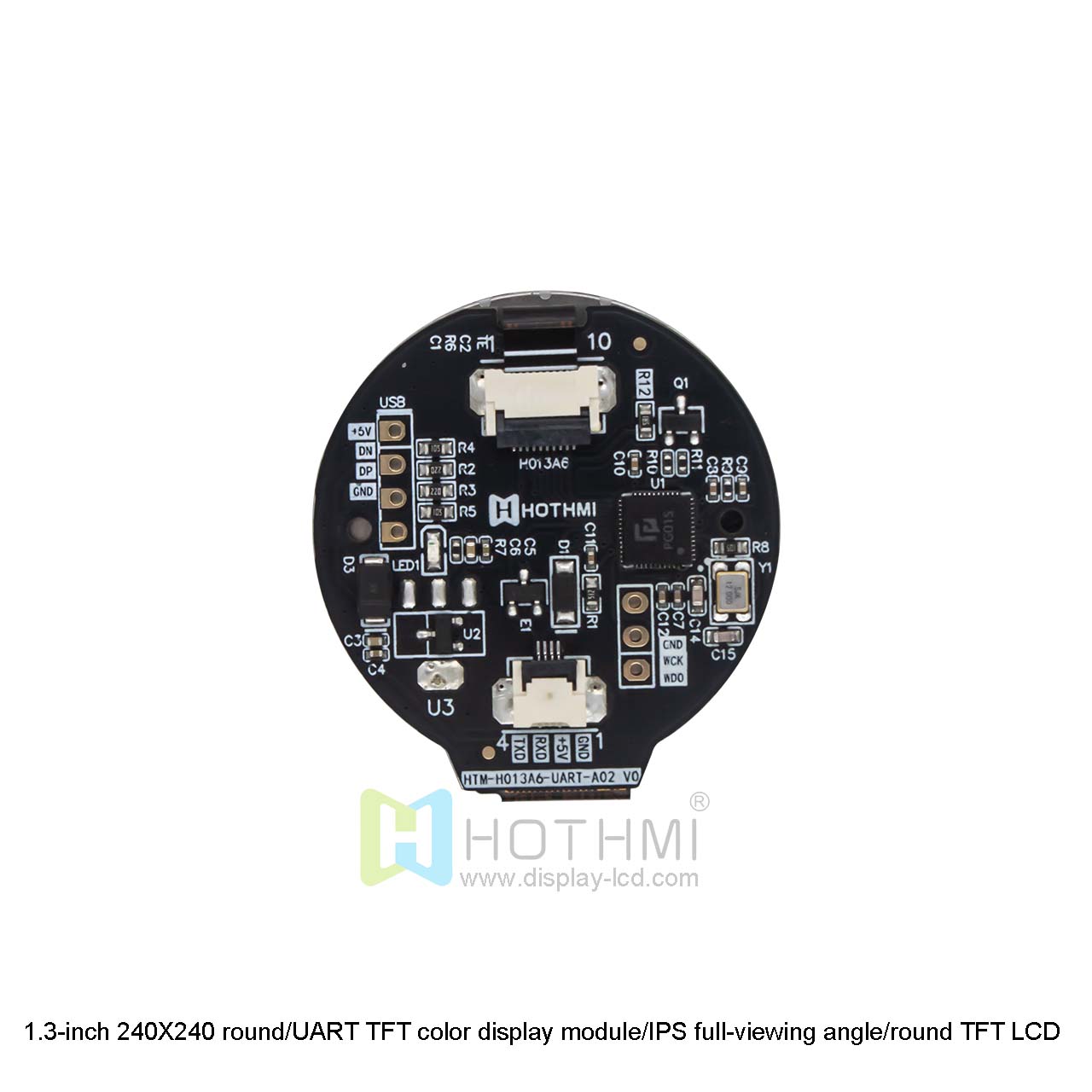

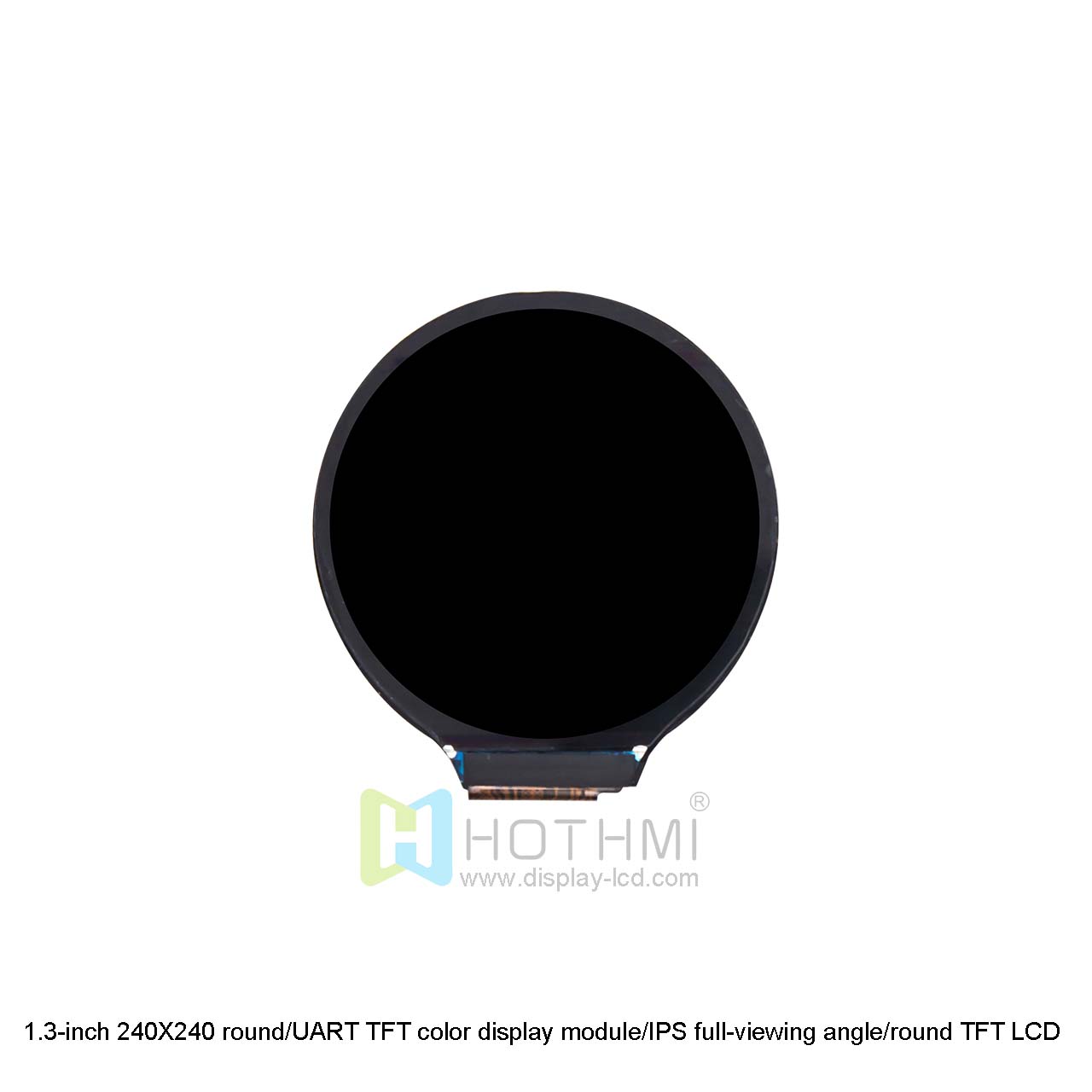

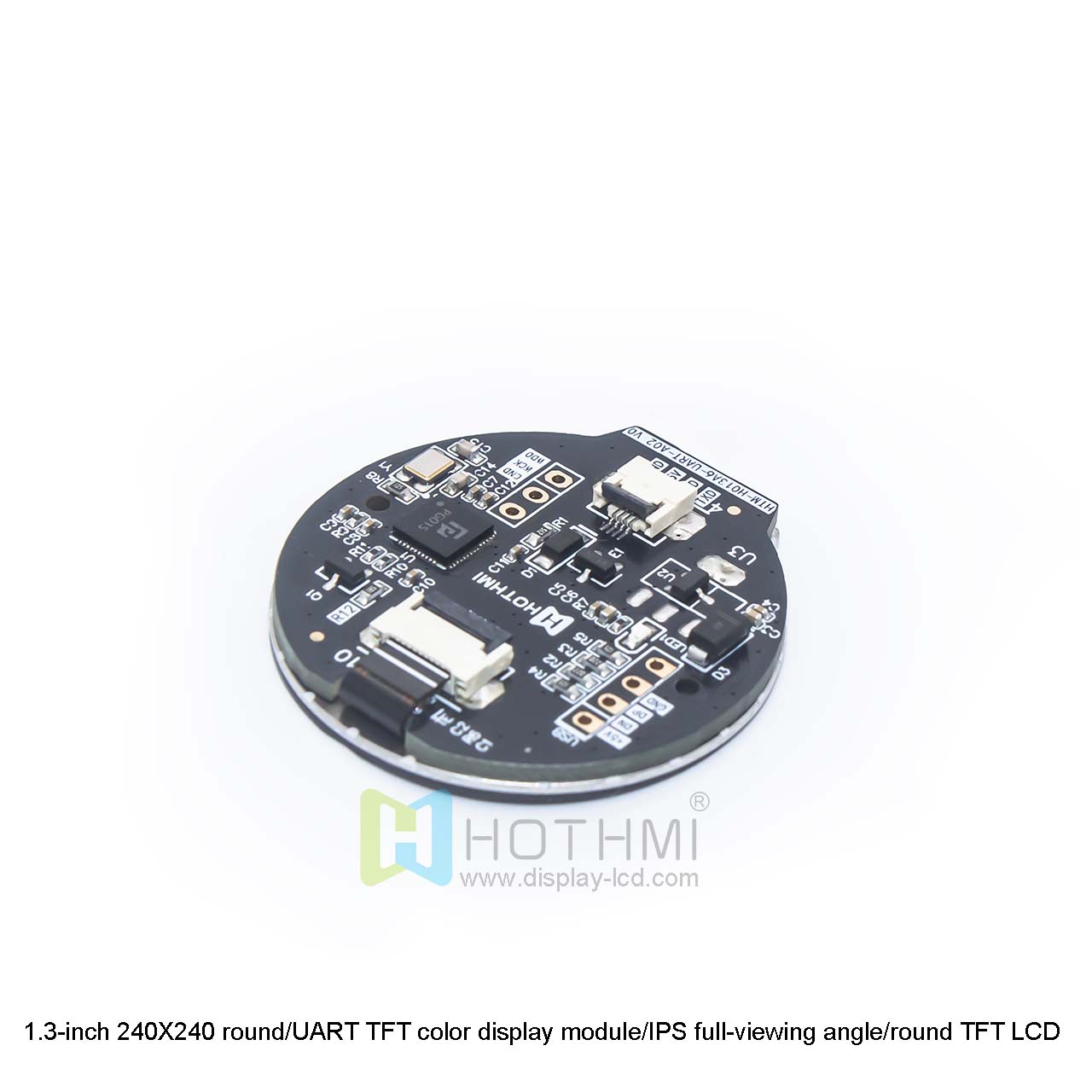

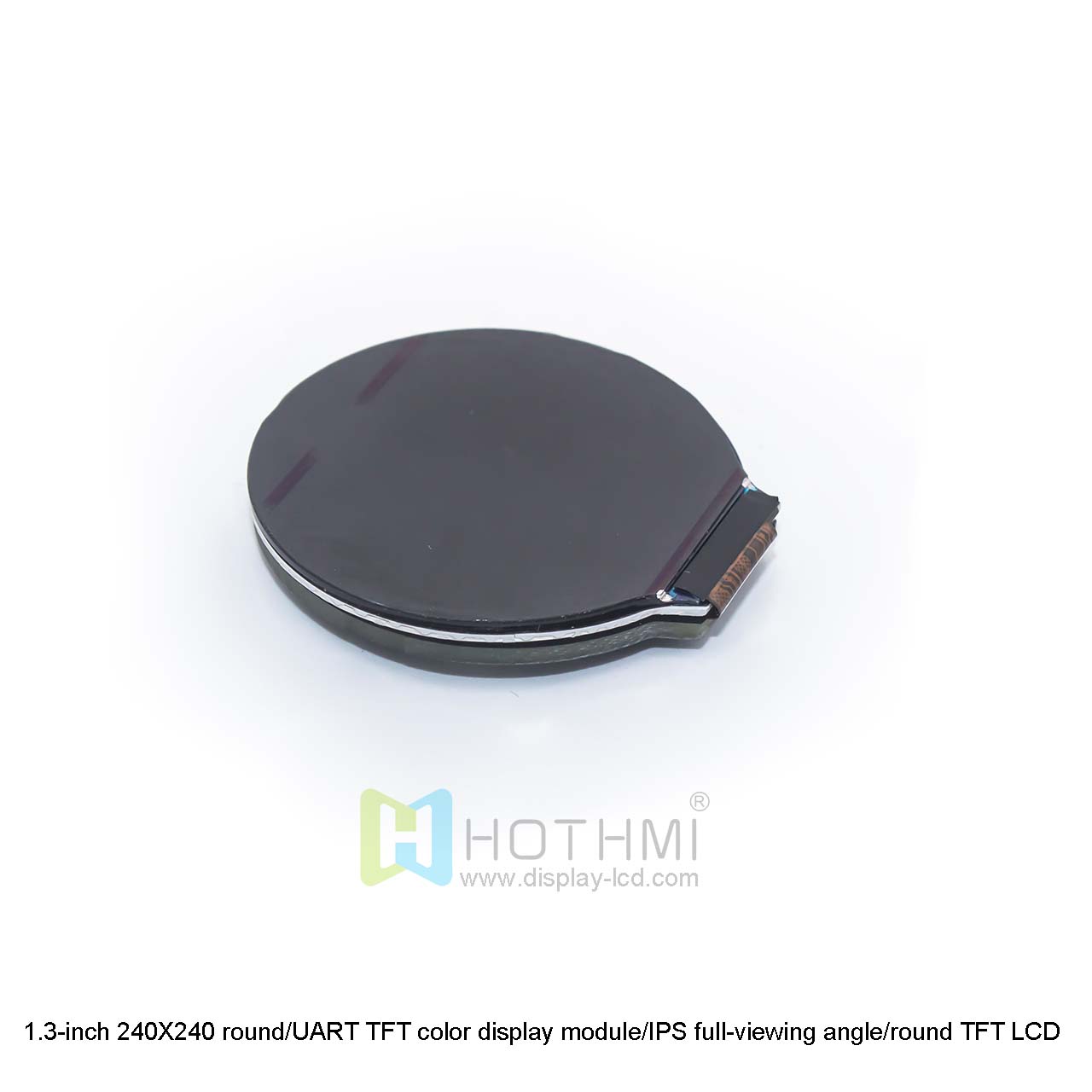

1.3-inch 240X240 round/UART TFT color display module/IPS full-viewing angle/round TFT LCD module/panel smart serial port screen HTM-H013A6-UART-A02, with EzUI. E (simple and easy to use), z (zero code), UI (user interface). This series of modules can quickly help users develop full-color graphical touch screen human-machine interface, allowing users to easily design and develop color LCD modules.
The biggest feature of the EzUI series of intelligent LCD display modules is its simplicity and ease of use and rich functions. Users can choose simple or complex usage methods to achieve the goal of code-free user interface design. Users can use the interface development tool software (EzUITool) to design, edit, configure controls and respond to settings of the human-machine interface, and then copy the resource files generated by the tool software to the EzUIH series module to complete the required human-machine interaction interface design and production without programming the microcontroller or other controllers. To meet the needs of users with special requirements, the EzUIH series modules still retain most of the display control instructions, allowing users to control the module display more freely. EzUIH is a functional and performance enhanced version of the EzUI series. Although the hardware platform is different, it is fully compatible with the functions of the EzUI series.
