Product type：TFT LCD
Show contents：360x640
Outline size(mm) ：43.68x77.02
Size of View Window(mm)：3.0
Display size(mm) ：3.0
Effective size(mm)：36.72x65.28
Product application：Instrumentation
Visual angle：Full view
Backlight type or brightness：400cd/m2
Connection PIN Number：40PIN
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：ST7701
TFT-H030A9NHIST4N40 | 3.0" IPS TFT LCD Display | TFT LCD Display Manufacturer | 360x640 HD resolution | -30℃~80℃ | For industrial computer | Interface SPI | Wide Temperature

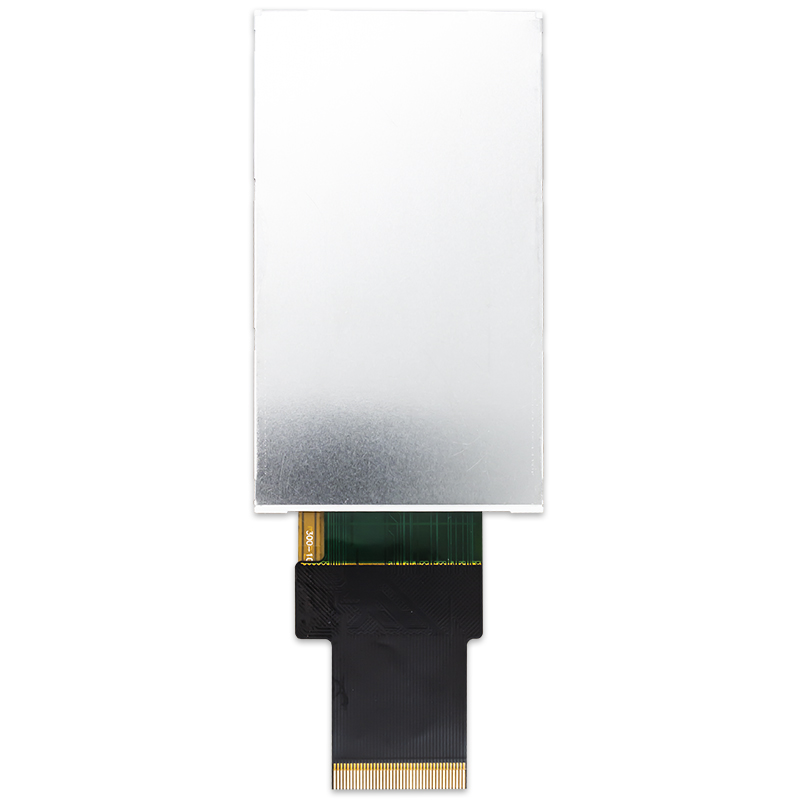

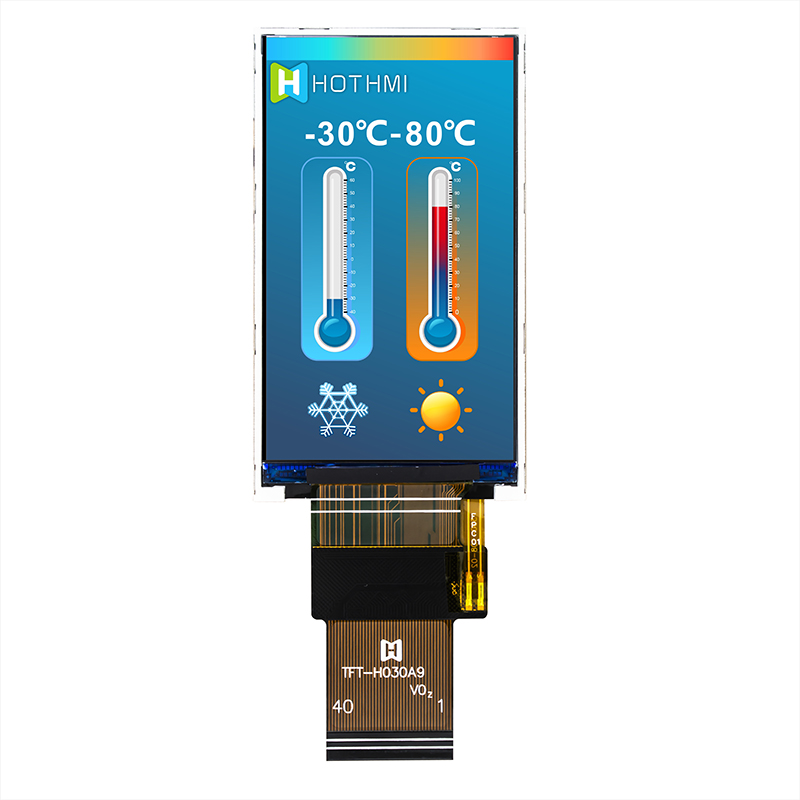

TFT-H030A9NHIST4N40 is a high-quality 3.0-inch IPS TFT LCD display designed for handheld devices. It features a ST7701 Portrait TFT display panel with a 360x640 HD resolution, providing crisp images and vibrant colors. With a wide temperature range of -30°C to 80°C, this display is suitable for various industrial computers and devices.
The display uses an SPI interface, making it easy to integrate into different types of devices. The SPI interface offers high-speed data transfer and reliability, ensuring excellent performance for your device in various application scenarios.
TFT-H030A9NHIST4N40 not only delivers outstanding visual performance but also undergoes rigorous quality control and testing to ensure its stability and reliability. It is an excellent LCD display suitable for a wide range of industrial and commercial applications, meeting the high-quality requirements of your device.
