Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：93.0x70.0x13.5
Size of View Window(mm)：65.5x38.0
Display size(mm) ：60.775x32.935
Point spacing(mm)：0.475x0.515
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：20PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7565R

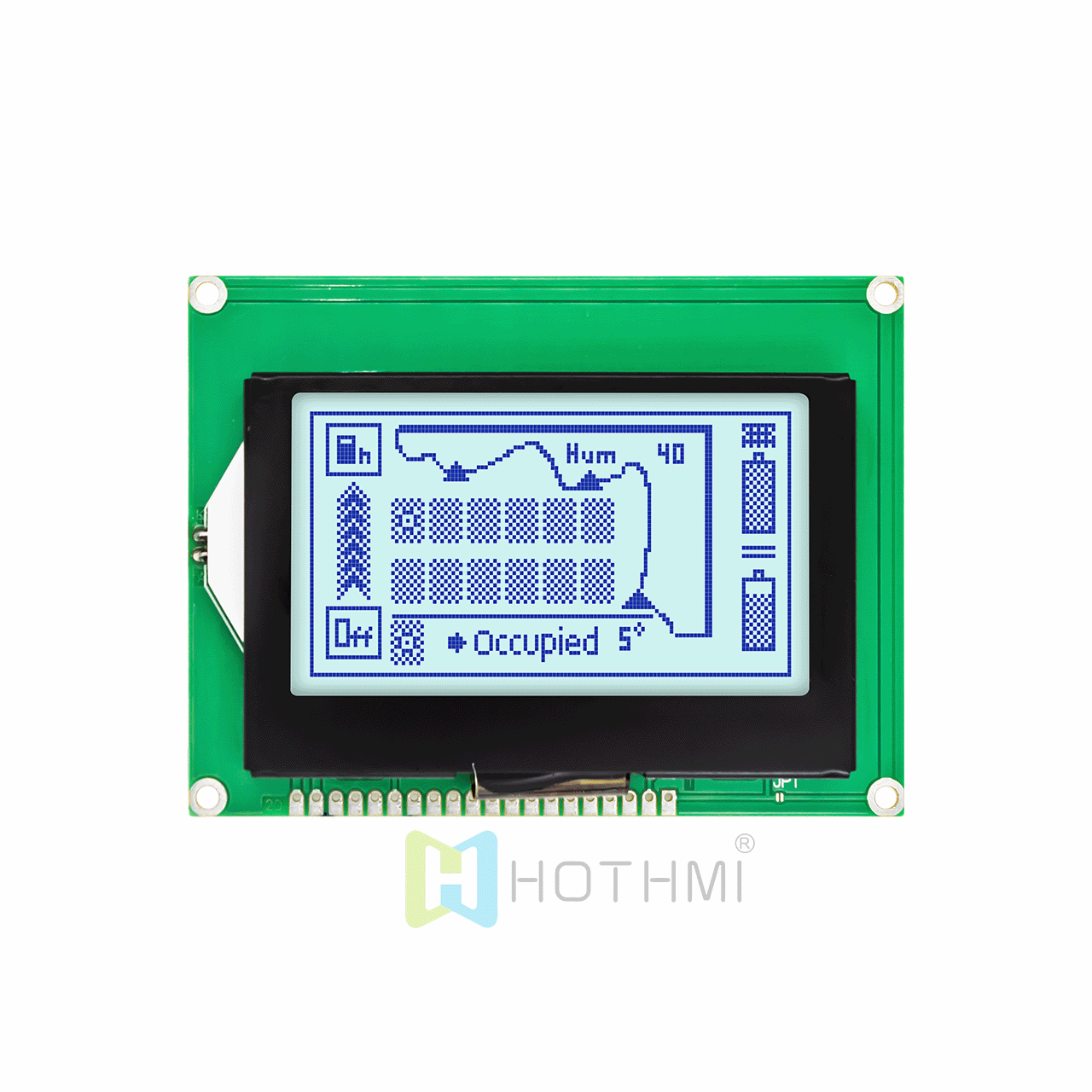

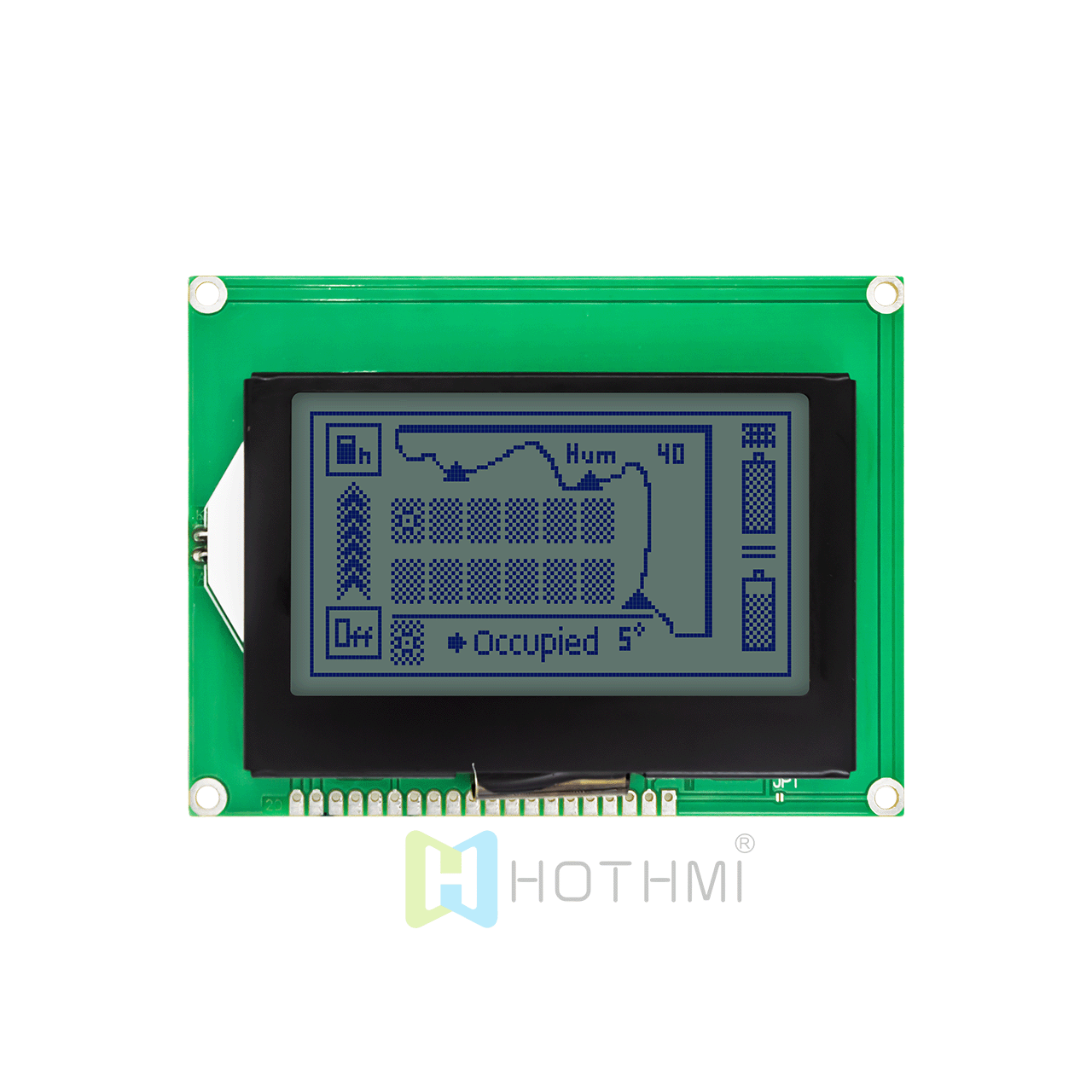

This HOT Display 128x64 Graphic LCD module displays white pixels on a bright blue background and contains a white single LED backlight that can be easily dimmed via a resistor or PWM. This semi-transparent polarizer LCD is engineered to be stn positive. In darker environments, the LCD has a powerful built-in backlight that provides high contrast and displays clear graphics to the viewer. In bright conditions, the polarizer remains visible under reflection. This advanced display technology ensures No matter the lighting conditions, the display is always easy to read.
This graphic LCD module has built-in negative voltage. It can be easily controlled via 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi etc. It can be used in any embedded system, industrial equipment, security, medical and handheld devices. . The HTM12864-27-11W-A5P model is designed to withstand harsh operating conditions and will perform abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.
