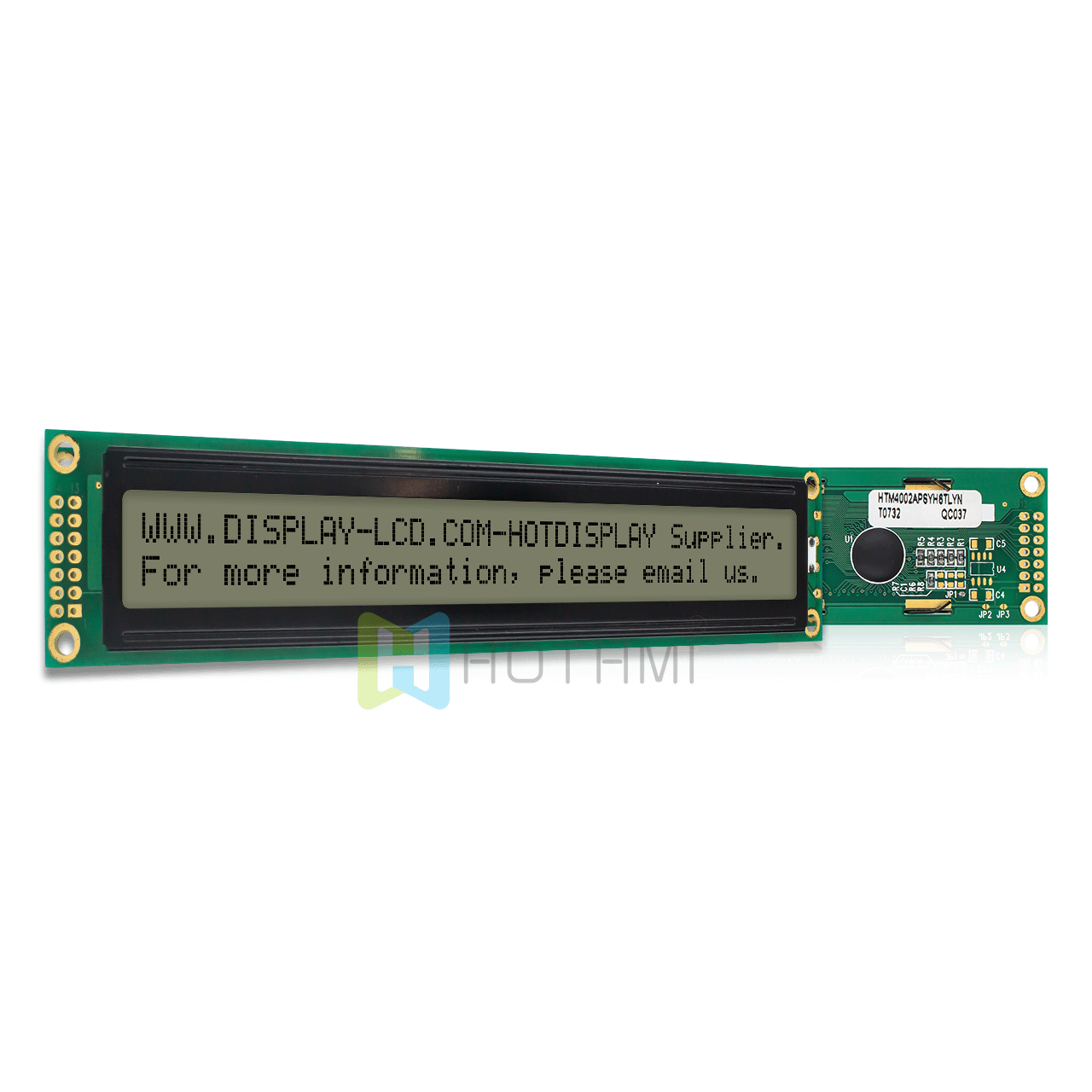

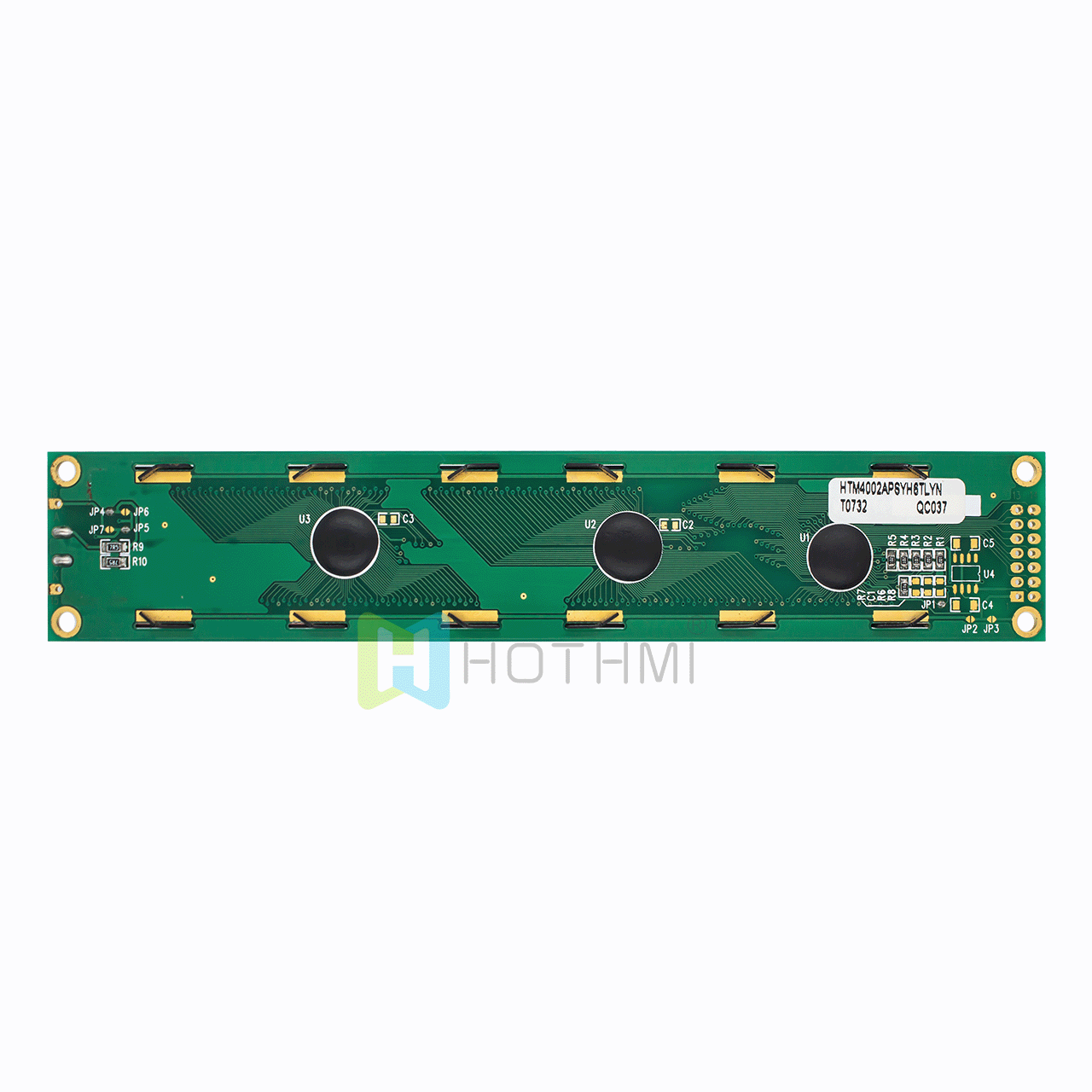

Product type：Character LCD Module
Show contents：40x2
Outline size(mm) ：182.00x33.5x14.0
Size of View Window(mm)：155.1x16.0
Display size(mm) ：147.5 x 11.5
Point spacing(mm)：0.65 x 0.7
Product application：Instruments
Visual angle：6H

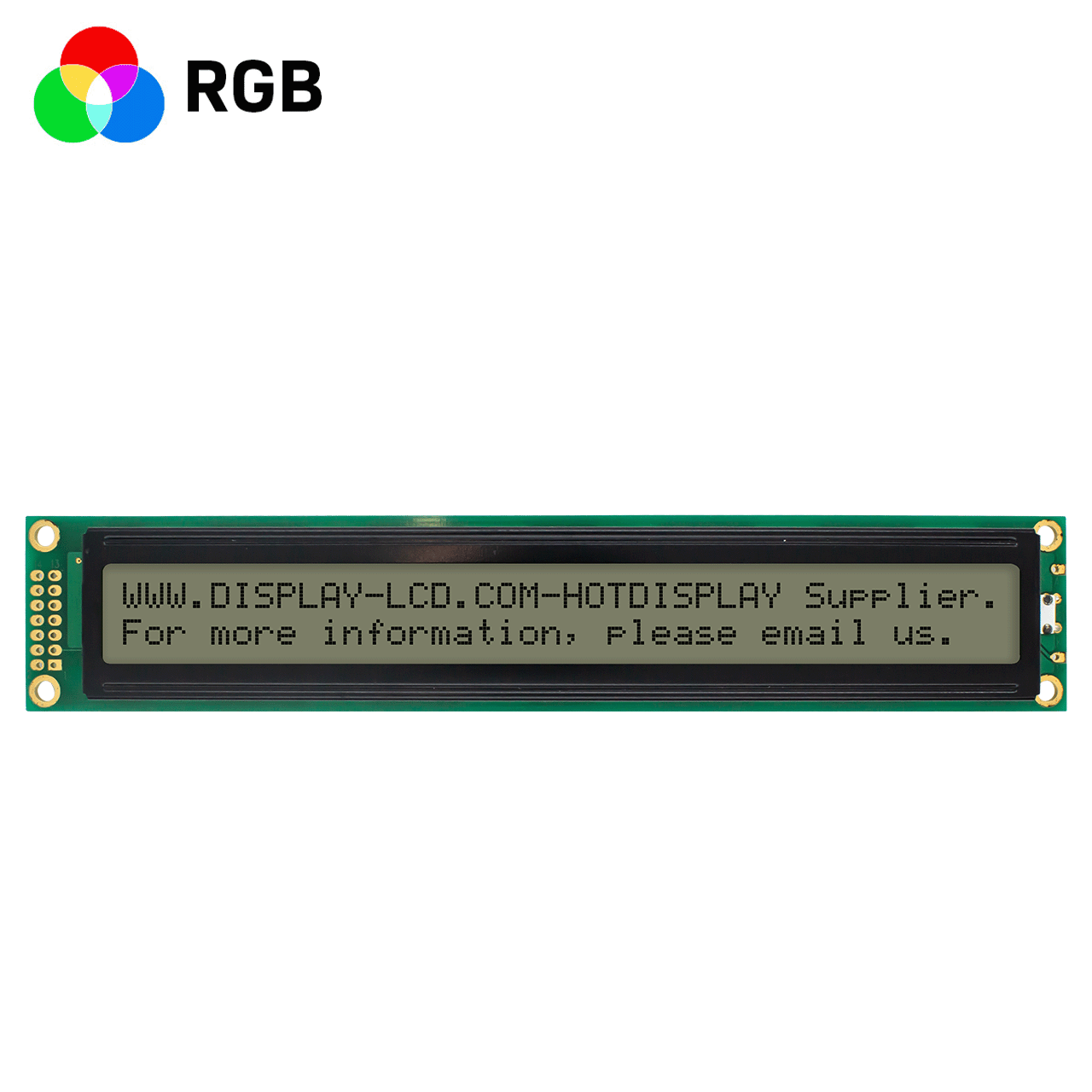

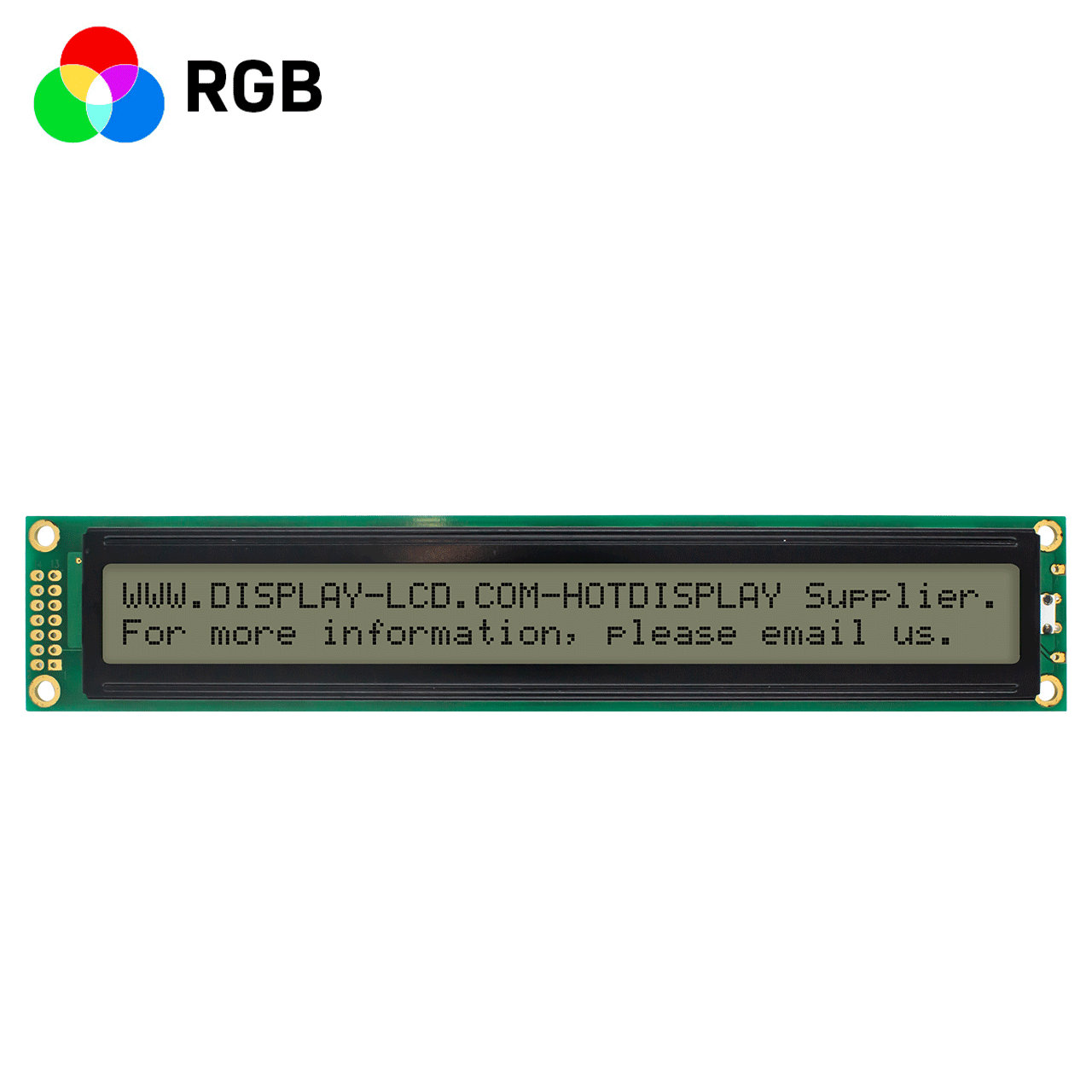

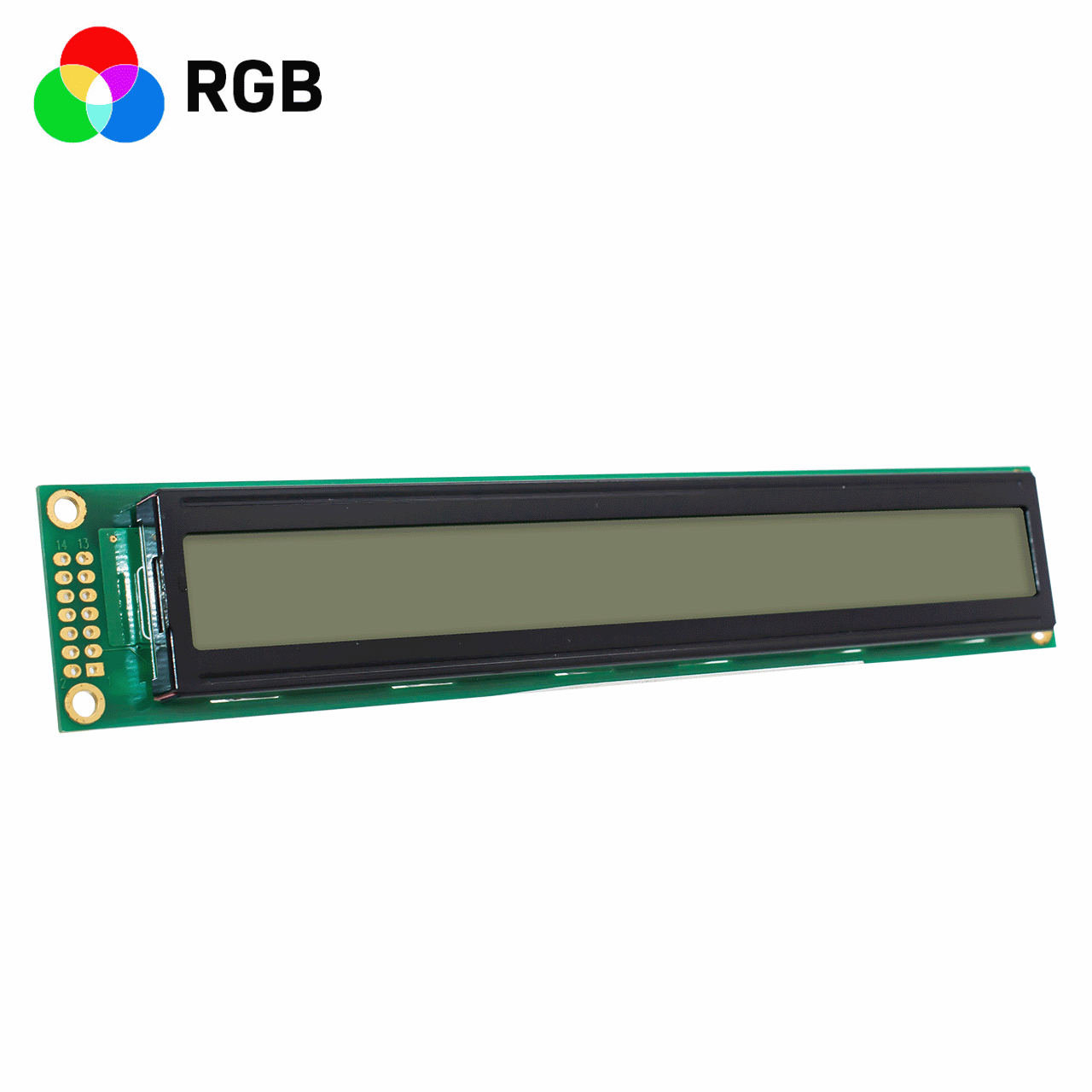

Backlight type or brightness：R/G/B
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U
This compact LCD screen features a thermal display of 40 characters per line. This monochrome LCD ensures optimal readability in different lighting conditions, making it suitable for use with ambient light or its own integrated backlight. The HTM-4002a-35s-a5p features a positive FSTN (Super Twisted Tensile) and you can choose between red, green or blue for the taillight. The LCD has an optimal viewing angle with a 6:00 scene and a wide operating temperature range, from a low temperature of -20 degrees Celsius to a scorching 70 degrees Celsius, making it suitable for use in different environmental conditions. This high-performance display is powered by 5V and is compatible with different development boards, including Arduino. To reinforce our commitment to environmental responsibility, each of our products adheres to the RSP standard, emphasizing its environmentally friendly nature.
