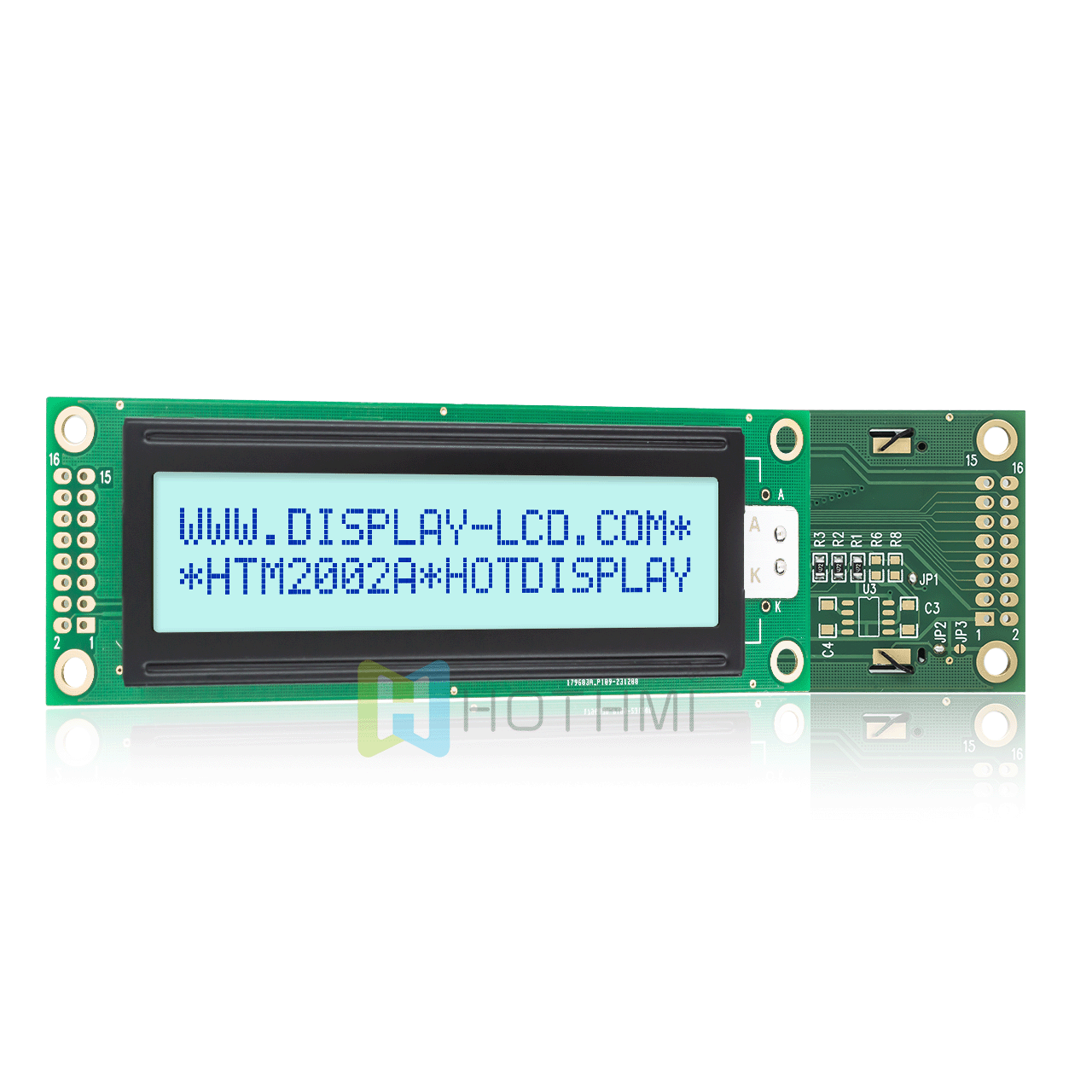

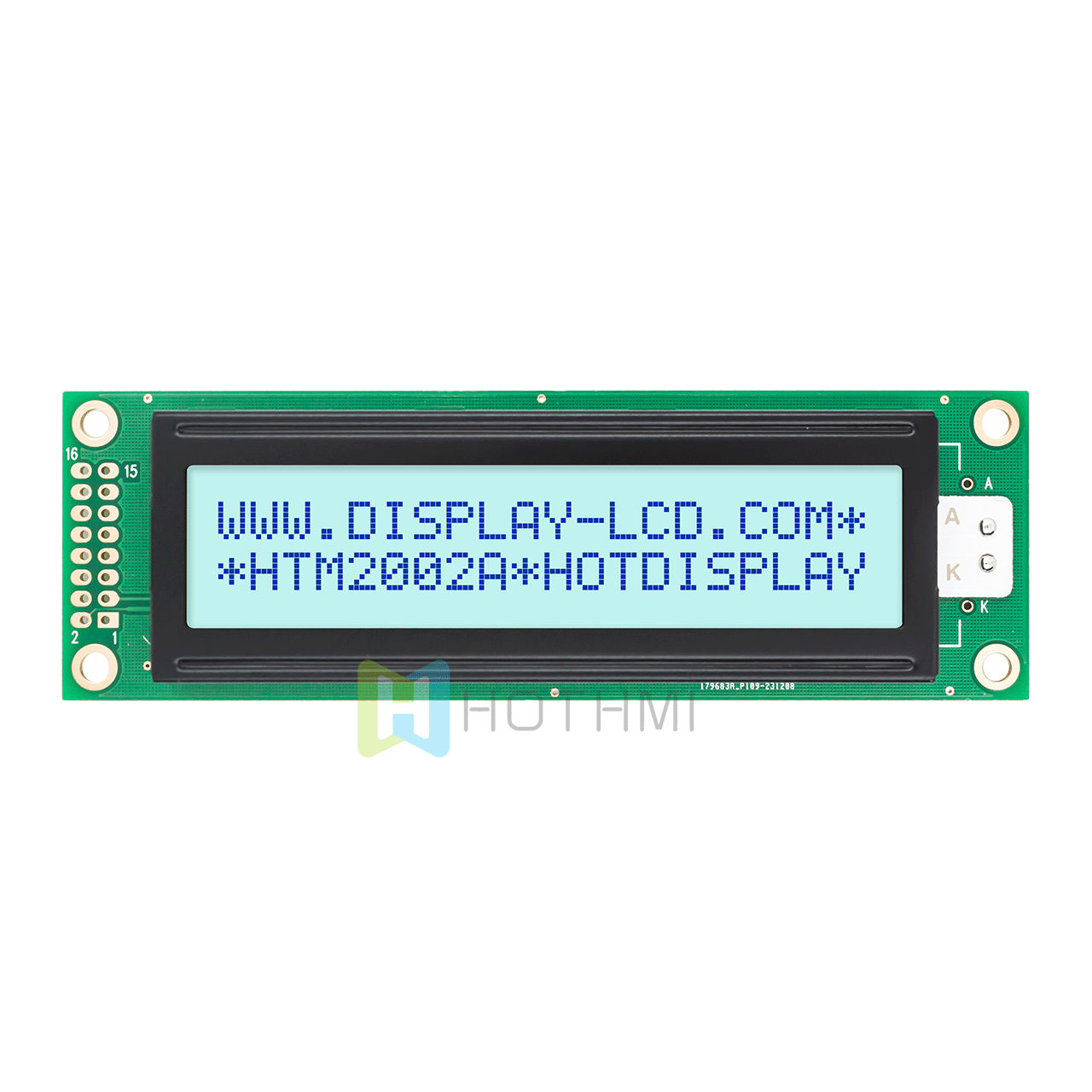

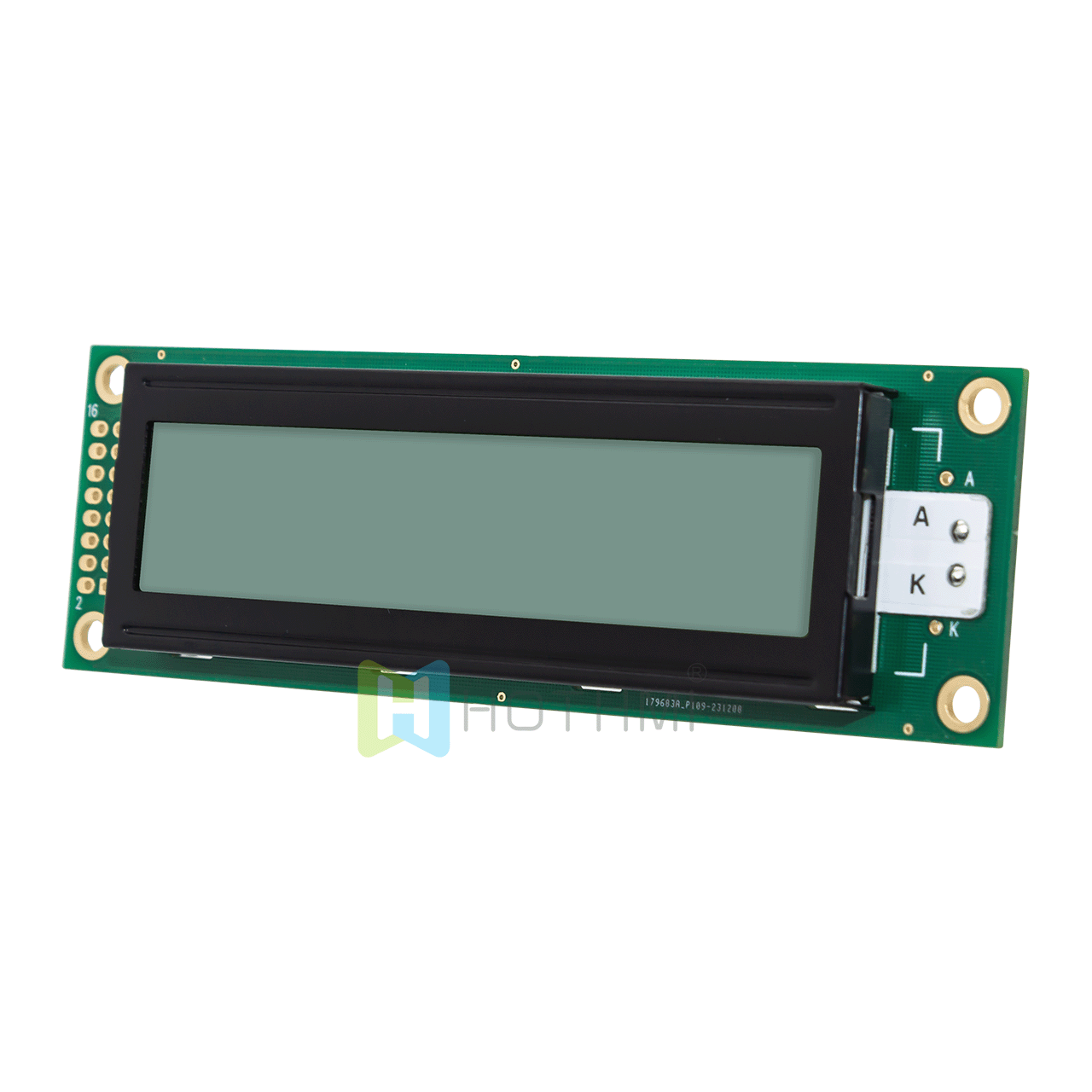

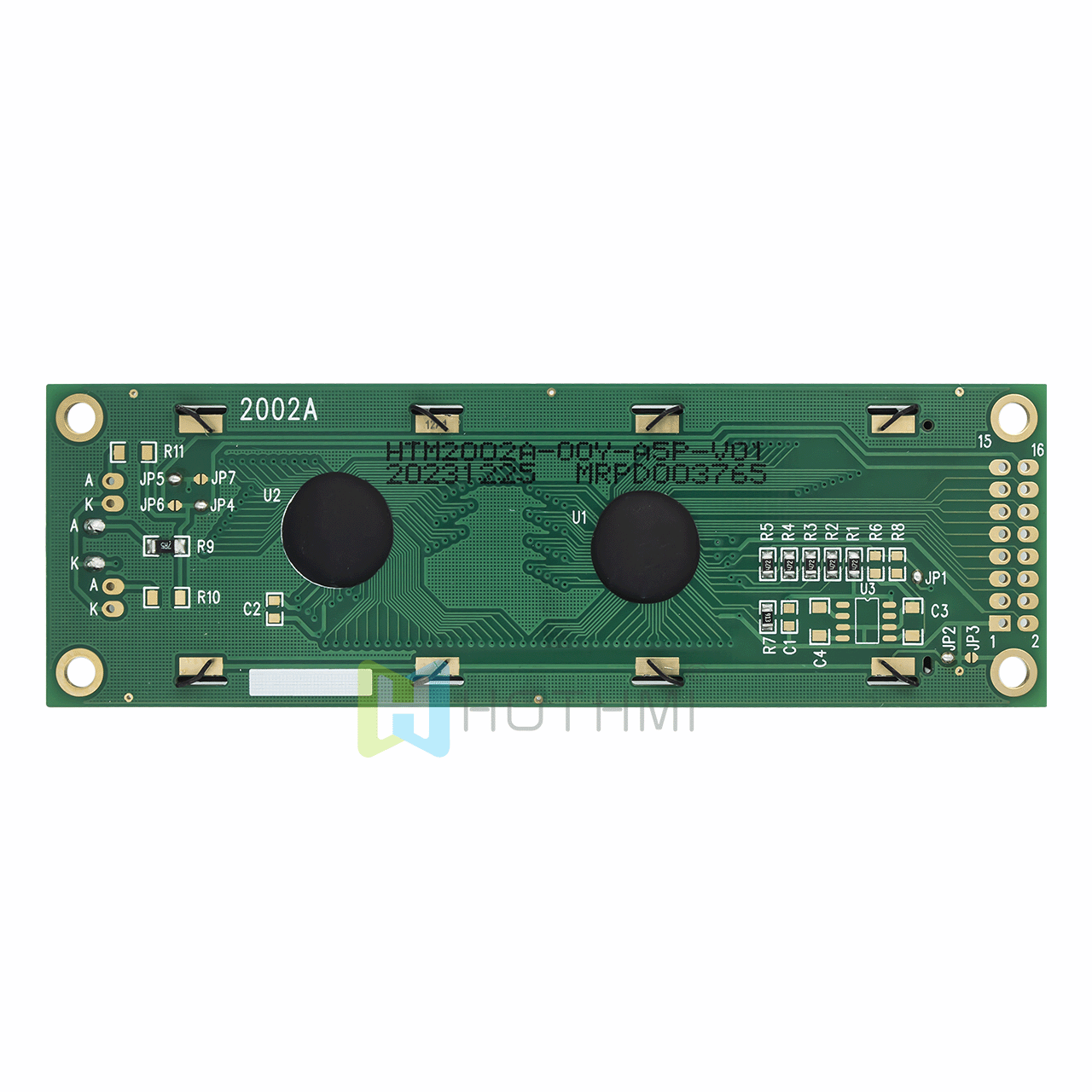

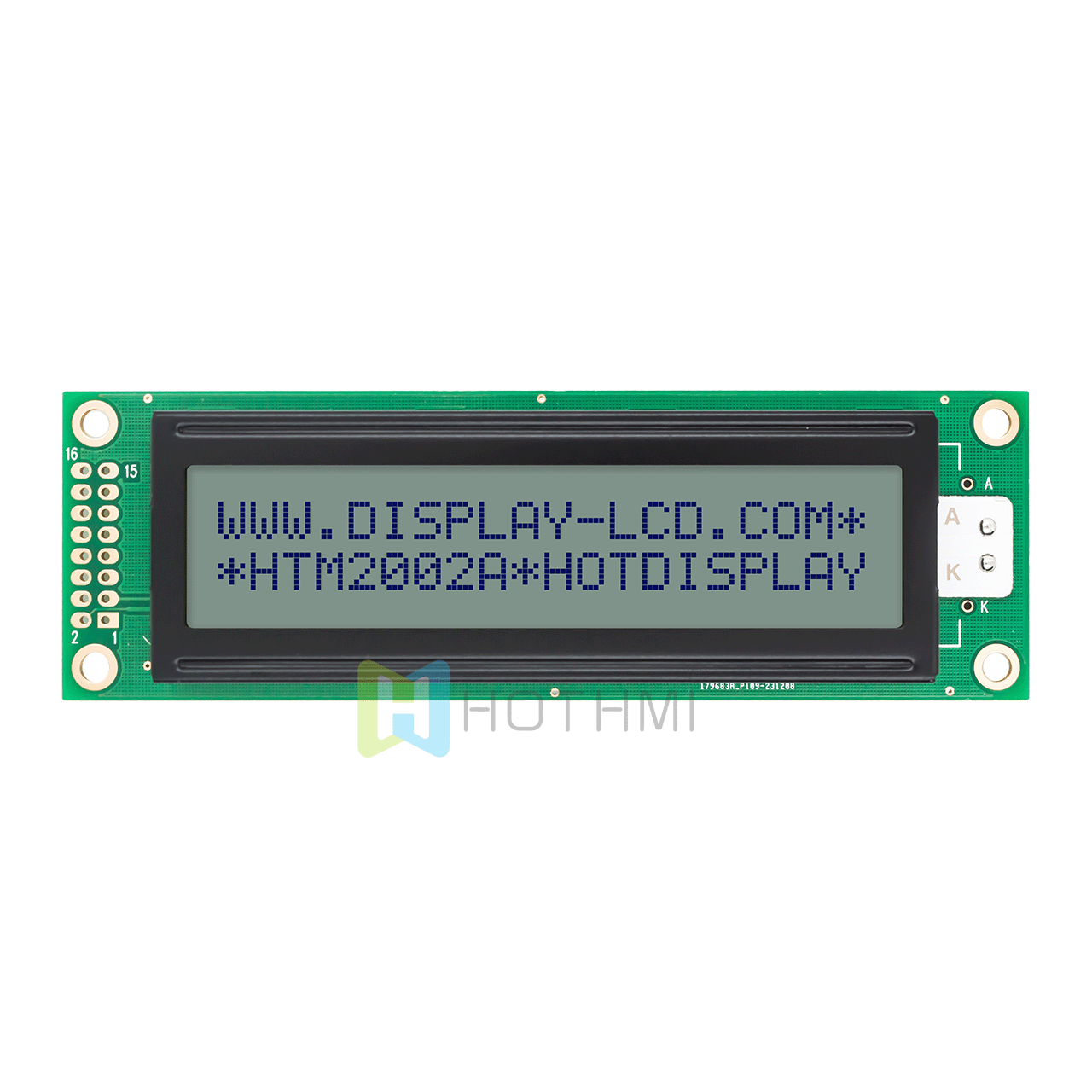

Product type：Character LCD Module
Show contents：20x2
Outline size(mm) ：116.0x37.0x14.6
Size of View Window(mm)：83.0x18.6
Display size(mm) ：75.4x11.5
Point spacing(mm)：0.65x0.7
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U
The Hot Display 2x20 Character LCD is a transfer LCD display primarily designed for use in embedded systems, electronic DIY projects, and educational purposes. When activated, the screen will display characters with gray pixels on a blue background. The initial settings can be default settings. This can be adjusted via the corresponding unit settings. As a transmissive LCD screen, the transparency of the LCD screen is adjusted to control the passage of light to form an image. Screens require backlighting to ensure pixel visibility. The operating temperature range is wide, from -20 degrees Celsius to 70 degrees Celsius, suitable for a variety of environmental conditions. The most recommended viewing time is 6:00. This may indicate that the display performs better during the day or under certain lighting conditions. You will need a 5V power supply, which is the standard voltage for typical embedded systems and Arduino-based electronic projects. Comply with RoHS standards to ensure your products comply with environmental regulations.
